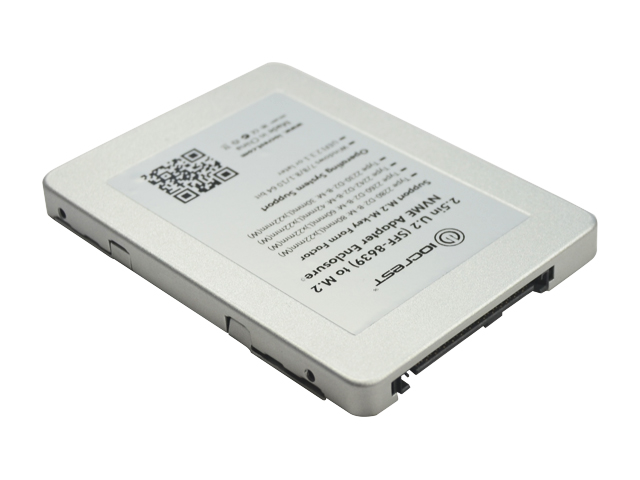

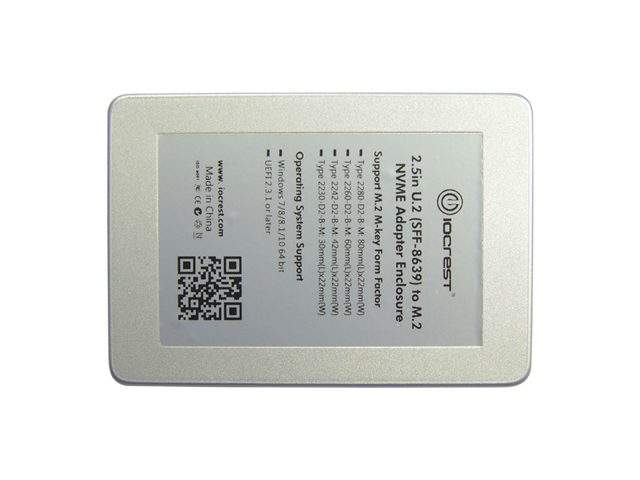

U.2 (SFF-8639) to M.2 PCI-e I/F SSD Adapter,IO-U2TOM2-F2

Aluminum alloy shell material, good heat dissipation.Buit-in SFF-8639 plug connector ,Buit-in M.2 (NGFF) M-key receptacle connector,D1 ON indicate M.2/PCI-e 4 Lanes device power OK, D2 indicate active status.

Model：

IO-U2TOM2-F2

Input Interface：

U.2 (SFF-8639)

Output Interface：

M.2

Motherboard Slot：

U.2 (SFF-8639)

Transmission Rate:

12Gb/s

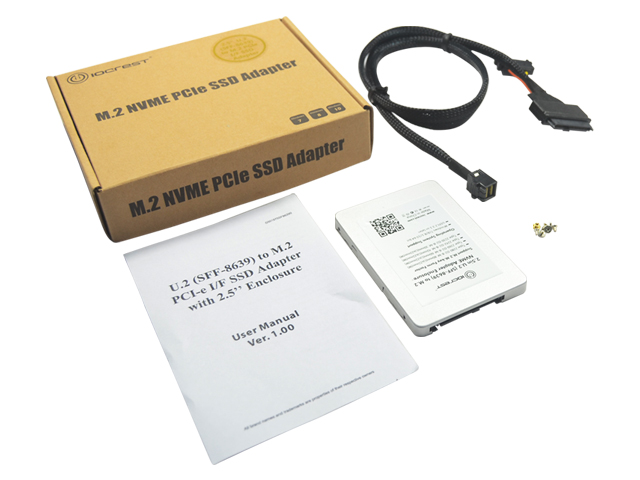

Auxiliary Accessories:

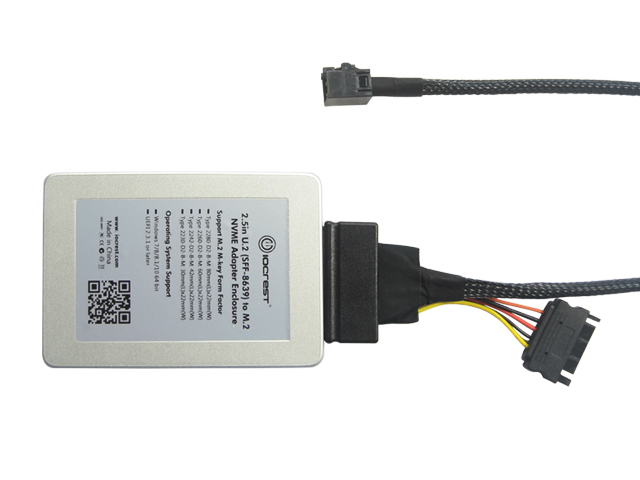

SFF-8643 to U.2(SFF-8639) Cable

Product Size:

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Feature
• Aluminum alloy shell material, good heat dissipation.

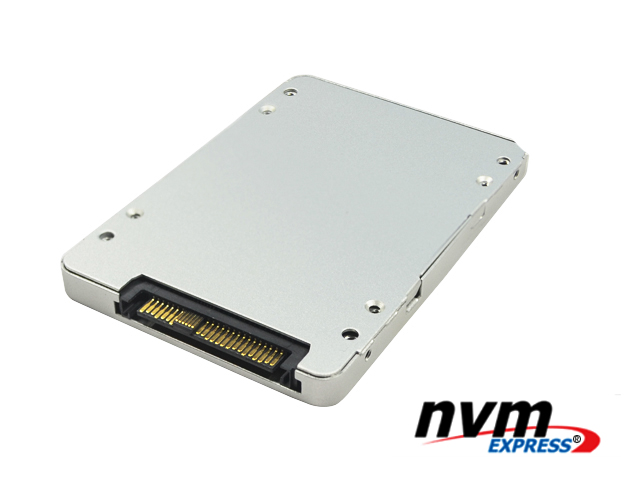

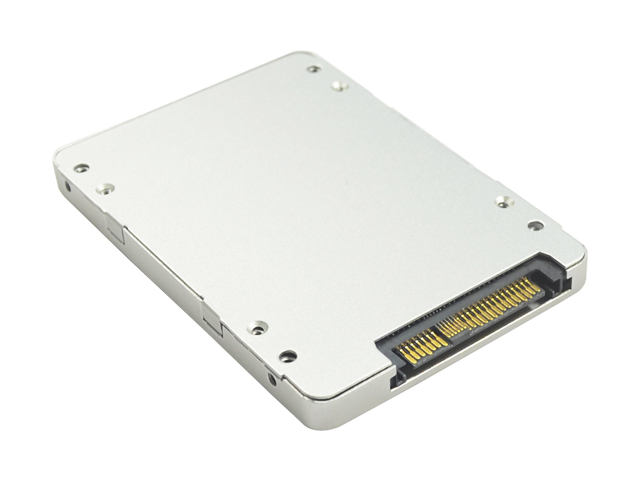

• Buit-in SFF-8639 plug connector
• Buit-in M.2 (NGFF) M-key receptacle connector
• D1 ON indicate M.2/PCI-e 4 Lanes device power OK
• D2 indicate active status
• Supports CLKREQ functions to implement PCIe port circuit power on/off

Specifications
•PCI Express Base Specification Rev 3.0
• SFF 8639 Enterprise SSD Form Factor Version 1.0a
• PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0
• PCI Express M.2 Spec. Revision 0.7, Version 1.0
• NVM Express 1.2a
• PWM synchronous buck converter Power IC
• 3.3V, 5A maximum output current
• Short circuit protection
• In-rush current suppression
• Thermal shutdown protection
• ESD HBM (Human Body Mode)/2KV
• ESD CDM (Charged Device Model) /500V
Support M.2 M-key Form Factor
• Type B-M:8022/6022/4222/3022

Operating System Support
• Windows 7/8/8.1/10 64 bit
• UEFI 2.3.1 or later
