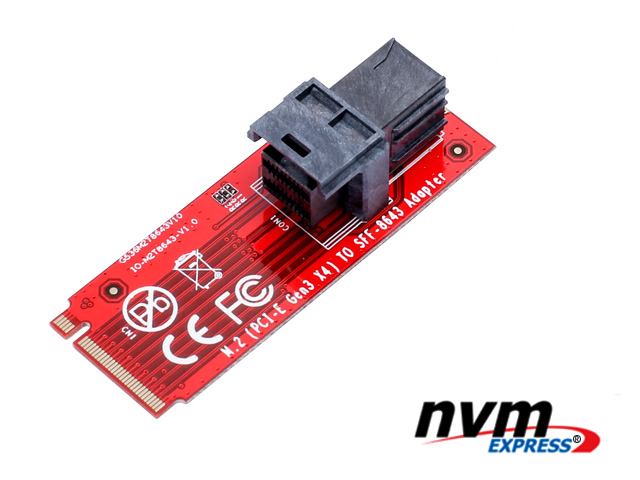

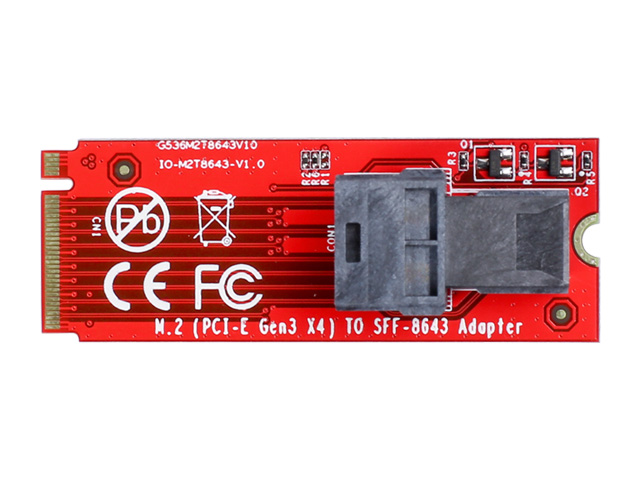

M2(PCI-E Gen x4) to SFF-8643 Adapter Card,IO-M2TO8643

This M2 SFF-8643 converter turns the connector for a M2 PCIe SSD into a 36-pin SFF-8643 connector. This allows connecting the high performance 2.5&quot NVMe U.2 (SFF-8639) SSD to system via a SFF-8643 cable. It is a simple and economical solution for sys

Model：

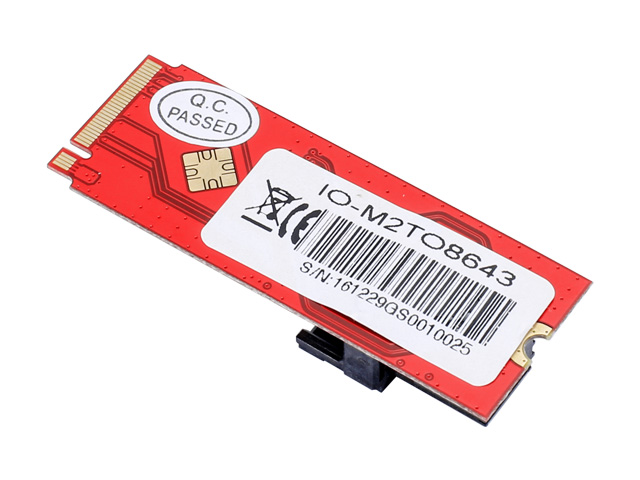

IO-M2TO8643

Input Interface：

M.2

Output Interface：

U.2 (SFF-8643)

Motherboard Slot：

M.2

Transmission Rate:

12Gb/s

Auxiliary Accessories:

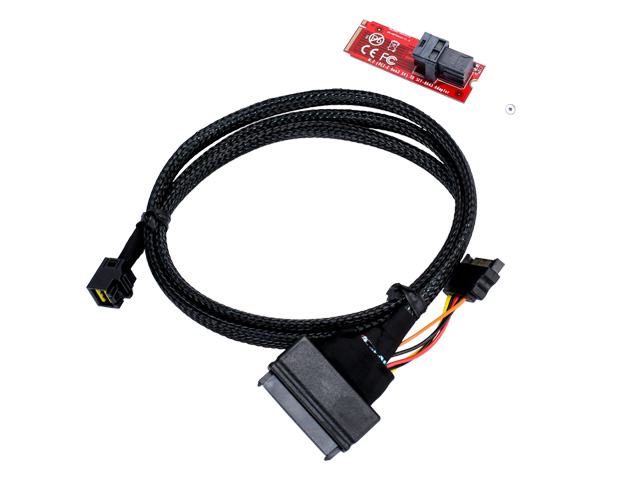

SFF-8643 to SFF-8639 Cable

Product Size:

Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Product description：

• This M2 SFF-8643 converter turns the connector for a M2 PCIe SSD into a 36-pin SFF-8643 connector. This allows connecting the high performance 2.5" NVMe U.2 (SFF-8639) SSD to system via a SFF-8643 cable. It is a simple and economical solution for system that already has the M2 PCIe SSD sockets on board or on one of Addonics M2 PCIe SSD adapter.
Feature
• Convert M2 PCIe SSD connection* to SFF-8643 connection
• Connect 2.5" NVMe U.2 (SFF-8639) SSD to M2 connector via SFF-8643 cable
• No drivers required for this converter
Specifications
• M2 SSD connector
• SFF -8643 connector
• Dimension:2260
• Operating temperature /relative humidity: - 40 °C - 80 °C /5-95% RH (non-condensing)
• Storage temperature / Relative humidity: - 40°C - 85°C /0 - 90% RH (non-condensing)
• RoHS compliant
Operating System Support
• Windows 7/8/8.1/10 64 bit
• UEFI 2.3.1 or later
* M2 PCIe SSD and M2 SATA SSD use the same type of connectors. The adapter is designed to work on only on M2 connectors that are designed for M2 PCIe SSD
Note: NVMe SSD installation: 1. BIOS in some older system may not support NVMe Express. System with UEFI BIOS may be required. Please verify with your system manufacturer to confirm the support of NVMe Express in the PCIe slot. 2. Software driver is required for installing 2.5" NVMe U.2 SSD. You may contact the SSD manufacturer web site to download the necessary driver for your OS
