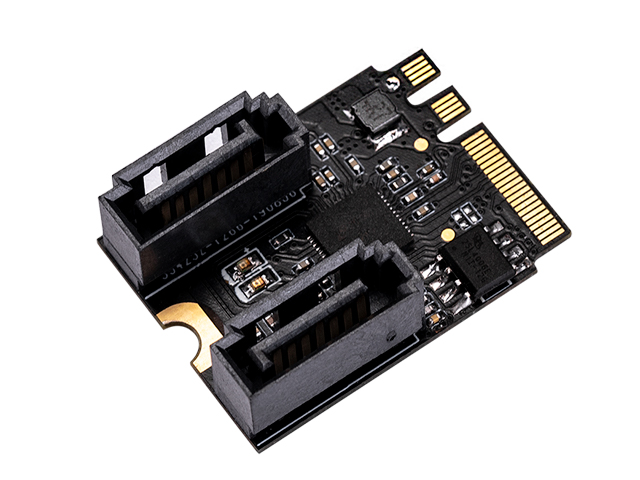

Lekuo M.2 A+E Key to 2-Port SATA 6G Adapter Card

Model

IO-ADA58215

Interface

M.2 A+E Key, PCI Express x1 lane

Data Transfer Rate

6.0 Gbps / 3.0 Gbps / 1.5 Gbps

SATA Ports

2 x SATA III Ports

AHCI

Supported

IDE Mode

Supported

NCQ

Supported (Native Command Queuing)

Port Multiplier

Supported (FIS-based and Command-based)

Power Management

Supports Partial / Slumber states, Drive power control, Staggered spin-up

Plug Detection

SATA plug-in detection supported

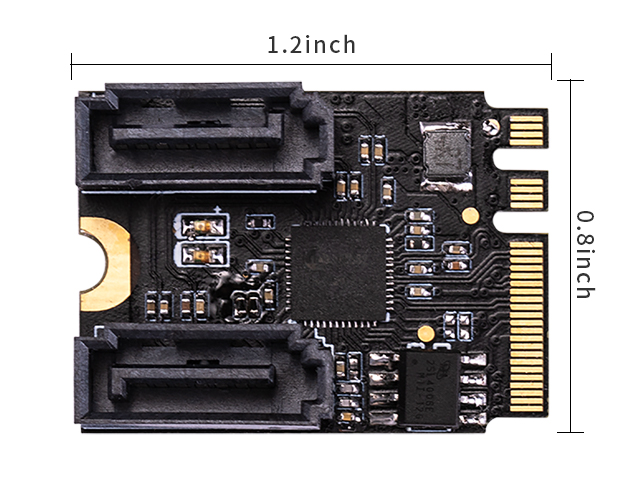

Dimensions

30 x 21 mm

System Compatibility

Windows 7/8/10 (x86/x64), Linux-based OS

Package Contents

1 × M.2(A+E Key) to 2-Port SATA Card,1 × User Manual,1 × SATA Cable

Features

• Supports one lane of PCI Express.

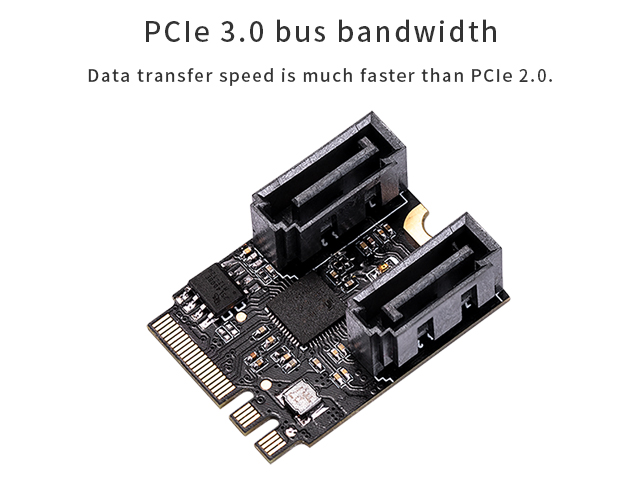

• Complies with PCI Express Base Specification Revision 3.1a.

• Supports PCIe link layer power saving mode.

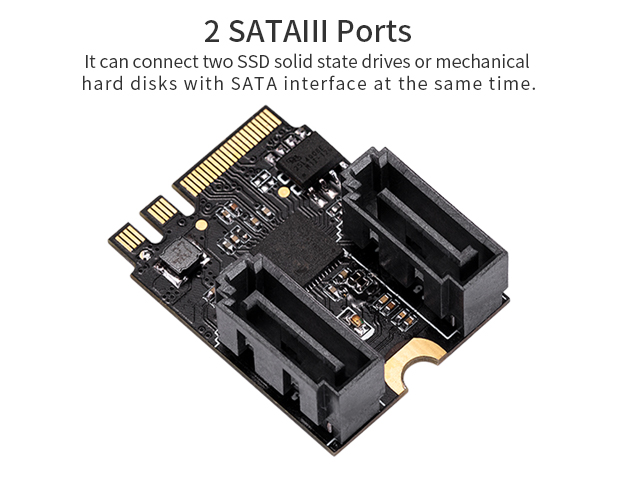

• Supports 2 SATA port.

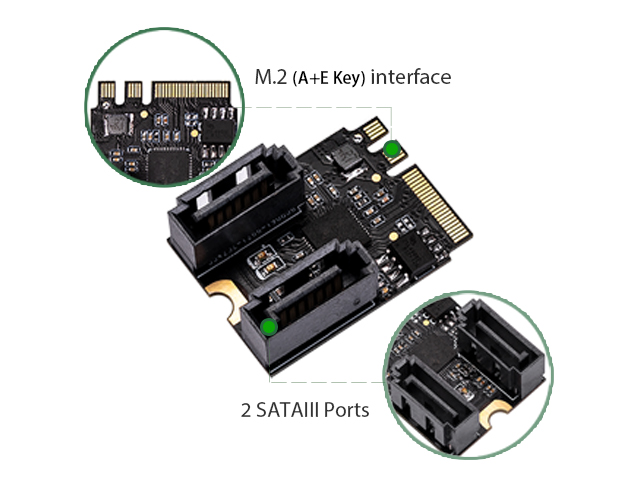

• M.2 A+E Key.

• Supports Port Multiplier

• Complies with SATA Specification Revision 3.2.

• Supports command-based and FIS-based for Port Multiplier.

• Supports AHCI mode and IDE programming interface.

• Supports Native Command Queue (NCQ).

• Supports SATA link power saving mode (partial and slumber)

• Supports SATA plug-in detection capable.

• Supports drive power control and staggered spin-up.

• Supports SATA Partial / Slumber power management state.

System Requirements

• Windows 7 (X86/X64)

• Windows 8/8.x / 10 (X86/X64) (Windows in-box driver)

• Linux-base OS

• UEFI

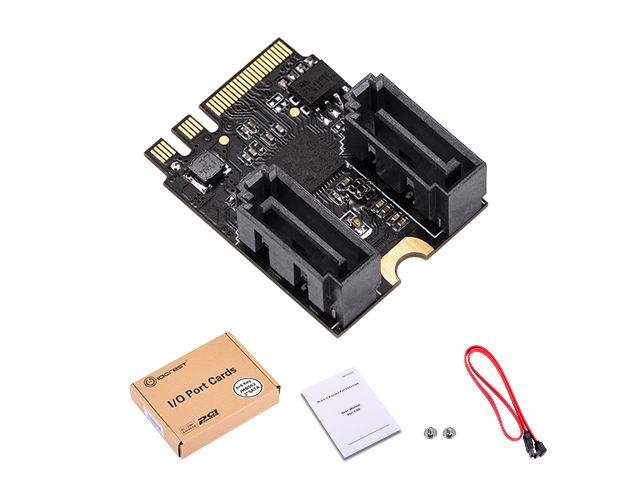

Package Contents

• 1 × M.2(A+E Key) to 2-Port SATA Card

• 1 × User Manual

• 1 × SATA Cable

• 2× M.2 Screws

Note: Contents may vary depending on country/market
