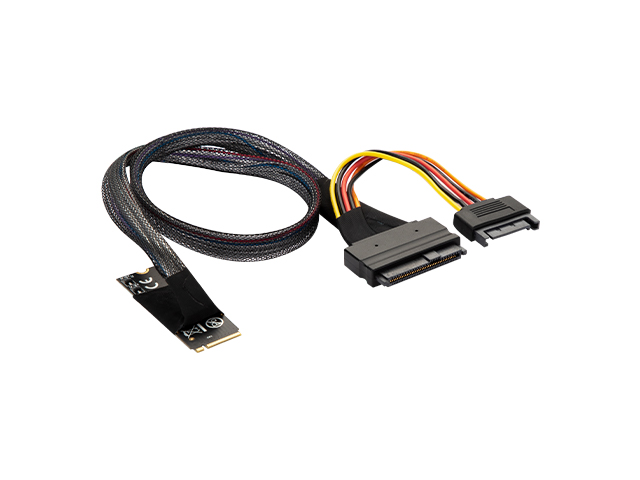

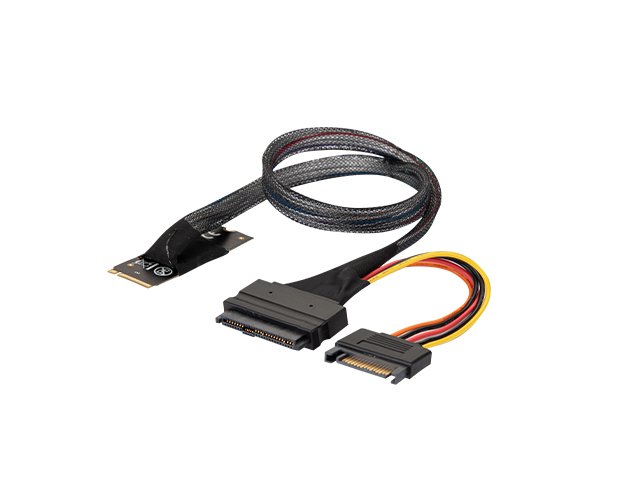

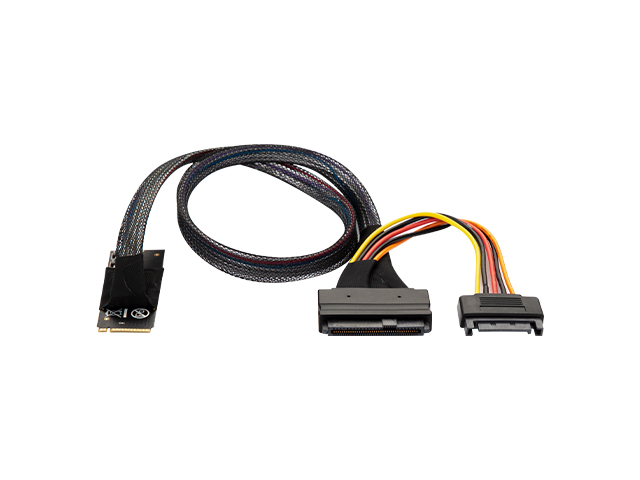

M.2 M-key to U.2 SFF-8639 Cable with 15 Pin Female SATA Connector,IO-M2TO8639

4 lanes of PCI-e designated,Support for SAS 2.1 and SAS 3.0 standards,Support PCI Express 3.0,Data rate up to 12Gbps,32Gbps,Convert M2 PCIe SSD connection to SFF-8639 connection cable.

Model：

IO-M2TO8639

Input Interface：

M.2

Output Interface：

SFF-8639

Motherboard Slot：

M.2

Transmission Rate:

32Gbps

Auxiliary Accessories:

mounting screws

Product Size:

22x60mm,50cm

Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Feature

• 4 lanes of PCI-e designated

• Support for SAS 2.1 and SAS 3.0 standards

• Support PCI Express 3.0

• Data rate up to 12Gbps,32Gbps

• Convert M2 PCIe SSD connection to SFF-8639 connection cable

• No drivers required for this converter

Specifications

• PCI Express Card Electromechanical Spec. Rev. 2.0

• PCI Express M.2 Spec. Rev. 0.7, Ver. 1.0

• Compliant with SFF-8639 Specification Rev. 2.0

SFF-8639 connector

• M2(PCI-E Gen x4) to SFF-8639(w/15pin sata power) Data Cable

• M2 Dimension: 2260

• RoHS compliant

Operating System Support

• Windows

• UEFI 2.3.1 or later

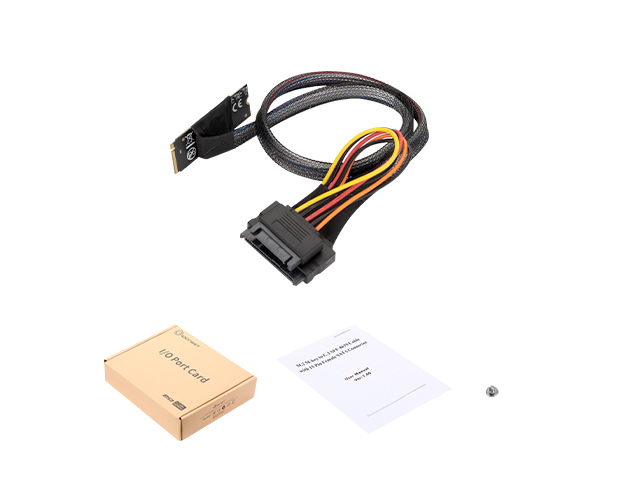

Package Contents

• 1 x M.2 M-key to U.2 SFF-8639 Cable with 15 Pin Female SATA Connector

• 1 x User Manual

• 1 x mounting screws

*M2 PCIe SSD and M2 SATA SSD use the same type of connectors. The adapter is designed to work on only on M2 connectors that are designed for M2 PCIe SSD
