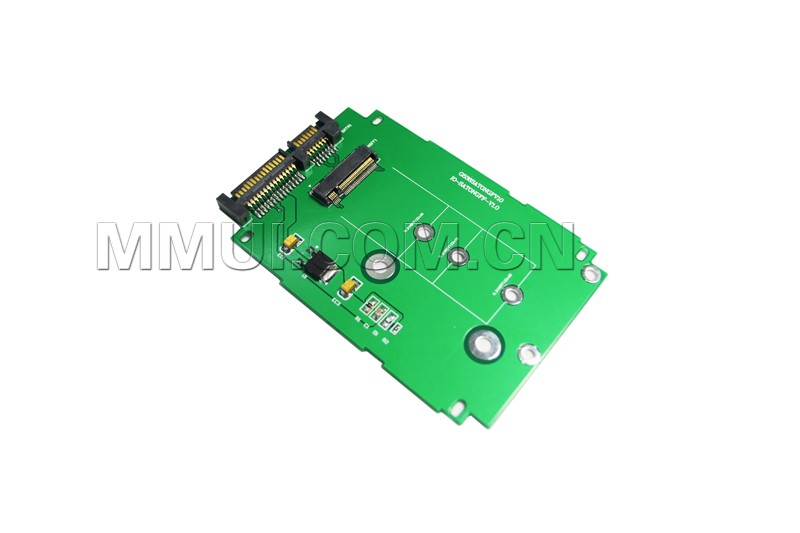

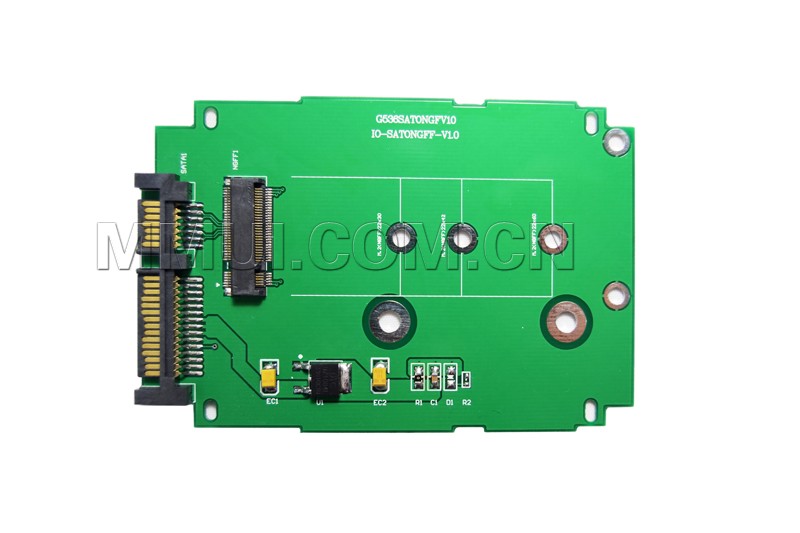

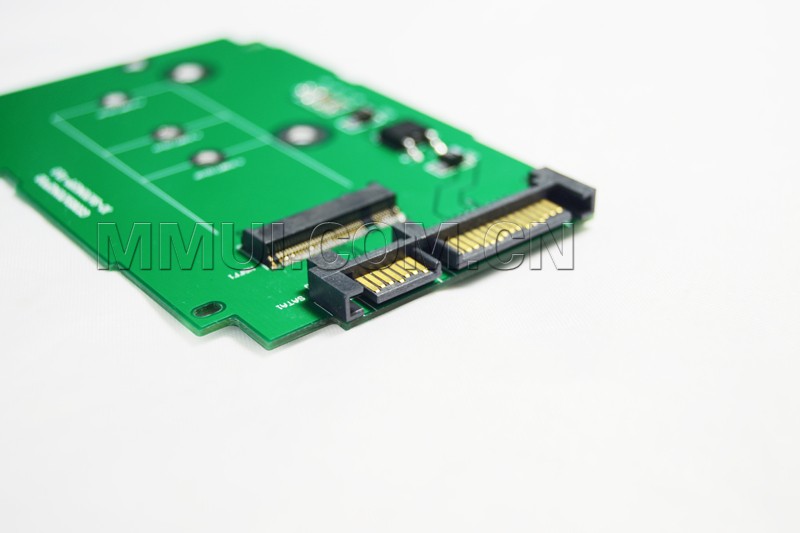

M.2 (NGFF) TO 2.5’ SATA III Card ,IO-NGFFTOSA-D1

This is a M.2 new specifications of SSD adapter card,it can be connected to use M.2(NGFF) SSD to standard SATA interface,this card can be used to be data transmission storage devices,it support systerm boot.Easy installation.

Model：

IO-NGFFTOSA-D1

Input Interface：

M.2

Output Interface：

SATA

Motherboard Slot：

M.2

Transmission Rate:

6Gbps

Auxiliary Accessories:

Product Size:

96.9x64.2mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

This is a M.2 new specifications of SSD adapter card,it can be connected to use M.2(NGFF) SSD to standard SATA interface,this card can be used to be data transmission storage devices,it support systerm boot.Easy installation, and no software driver required

Product specifacation:
M.2(NGFF) to SATAIII card
M.2 specification revision 0.9
Serial ATA Spec. Reversion 3.2
Support M.2-Socket2-B: 22*30, 22*42, 22*60
M.2 B Key Card Type supported
Supports high-speed SATA3/6 Gbps interface.
Port: standard SATA 22 pin connector

Note:Support M.2(NGFF) SATA SSD
The efficiency mainly depends on M.2(NGFF) SSD master IC and the size of the capacity

System Requirements
MS Windows, Mac OS, Linux operating syst
