Specifacation

• With an easy configuration scheme, the device can be a pure port multiplier in a RAID configuration which provides SATA port expansion just like a SATA Hub, or hard-drive performance booster which provides a high performance device seen by host controller or hard-drive data protector which automatically backup data to prevent data loss from hard-drive damage. JMB393 also has advance mode to provide both benefit of performance boost and data protection.

• JMB393 is a self-contained storage processor chip which completely frees up the main CPU loading.

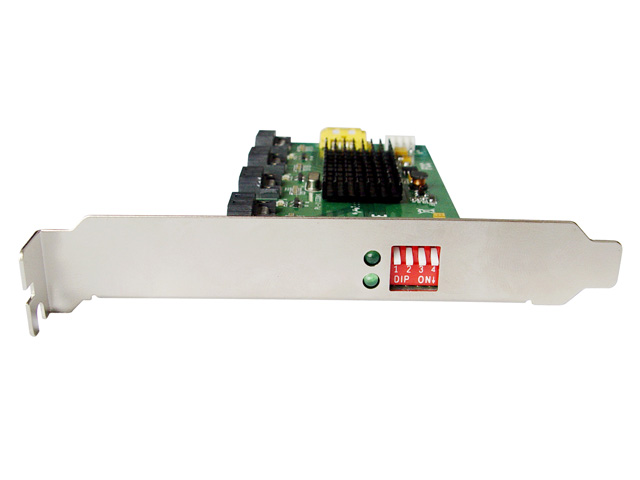

• External Dip Switch for Easy RAID Configiration

• Provides SATA Port Expansion, Data Protection and Performance

• Supports 5-port 3.0 Gbps SATA II Interface

• Supports SATA II Gen2i and Gen2m

• Automatically Speed Negotiation for 3Gbps or 1.5Gbps

• Supports Native Command Queue (NCQ)

• Supports Hot-plug

• Supports PM Aware and Non-PM Aware Host

• RAID feature:

• Supports various RAID configuration and monitoring method

• Rebuild proceed continuously between power cycling

• Rebuild speed: 200GB/hour

• Supports on-line Auto-Rebuild

• Supports on-line command based bad sector recovery

• Supports more than 2Tera Bytes RAID drive

• SATA In-band application interface

• RAID 3 / 5 write-back cache to enhance performance

• Supports RAID levels: 0 / 1 / 3 / 5 / 10 / LARGE / CLONE

• Independent of device SATA port connection sequence

• No external DRAM or processor required for RAID operation

• No driver, BIOS or software required for RAID operation

• Fully hardware-accelerated RAID Engine

• Port Multiplier functional in RAID only.

• Application

• SATA Ports Expander

• Flashing Green LED means card is operating normally

• Very Large Capacity Disk Systems

• Large Capacity & High Performance Solid State Drive

• Serial ATA Enclosures

• Disk Clone Systems

• Backup Systems

• NAS Servers

• RAID Subsystem
