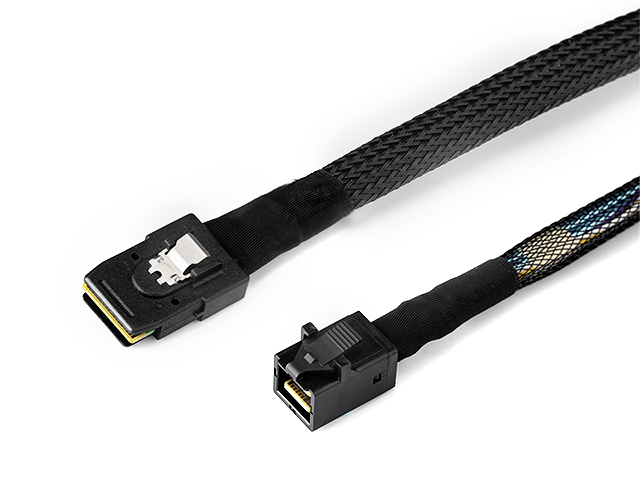

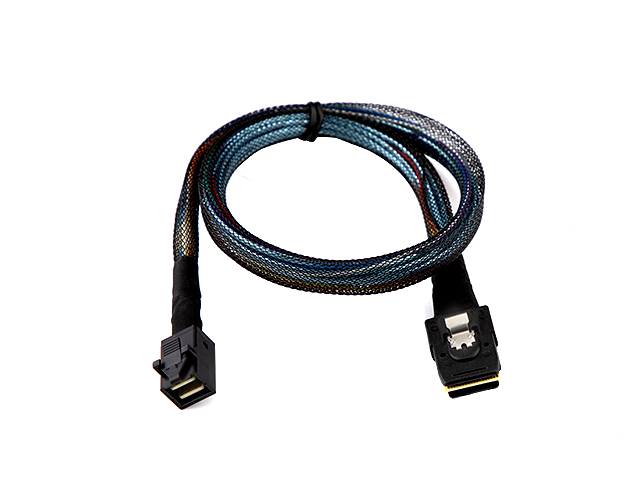

Internal Mini SAS HD SFF-8087 36 Pin to SFF-8643 36 Pin Data Server Cable 0.5M,IO-CAB864387

Transmission rate 12 Gbps.Meet SAS4.0 Rev. 5a specification.Mechanical Performance,Mating Force and Unmating Force,Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.

Model：

IO-CAB864387

Input Interface：

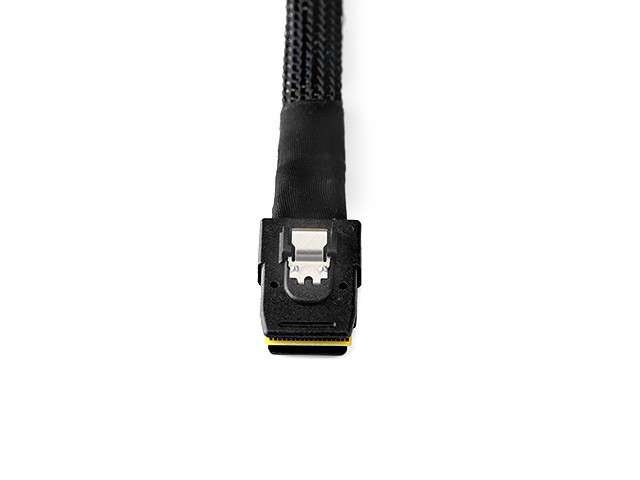

Mini SAS HD SFF-8087 36 Pin

Output Interface：

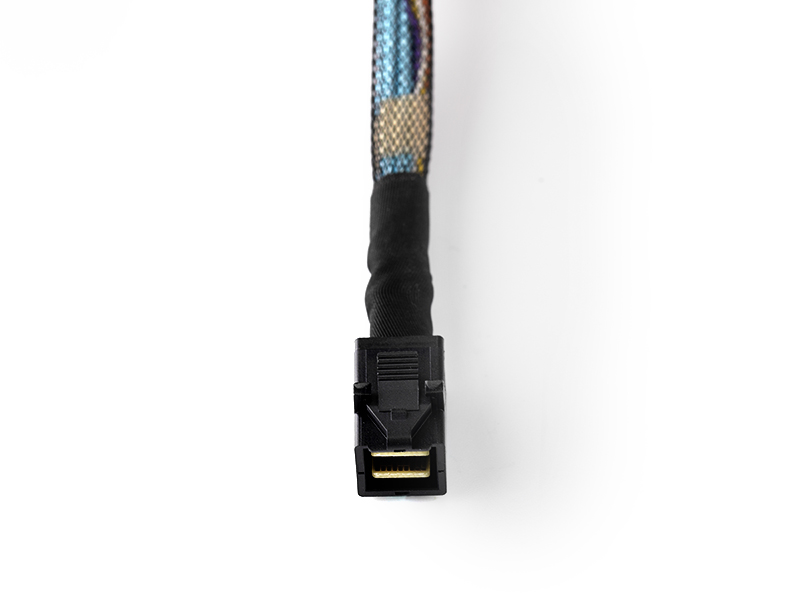

SFF-8643 36 Pin

Motherboard Slot：

Transmission Rate:

Auxiliary Accessories:

Product Size:

0.5M

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features

• Transmission rate 12 Gbps.

• Meet SAS4.0 Rev. 5a specification.

• Mechanical Performance

• Mating Force and Unmating Force

• Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.

• Mating Force: 100 N maximum.

• Unmating Force: 50 N maximum.

Electrical Performance

• Contact Current Rating

0.5Amperes maximum per pin when mated.

• Voltage Rating

30VAC per contact when mated or unmated.

• Contact Resistance

30mohm max. initial, 15mohm maximum after stress test.

• Dielectric Withstanding Voltage

500 VAC for 1 minute no breakdown.

• Insulation Resistance

1000 Mohm minimum.

Signal Integrity

• Mated Connector Impedance: 100 ohm±15%

• Cable Absolute Impedance: 100 ohm±10%

• Cable Pair Matching: ±5 ohm

• Common Mode Impedance: 25 to 40 ohms

• Insertion loss: -6dB maximum up to 4.5Ghz;11dB maximum up to 9Ghz.

• Crosstalk: -35 dB Max up to 6Ghz

• RoHS2.0: Compliant

Applications

• Data/Communications

• RAID (Redundant Array of Independent Disks )

• Workstations

• Rack-mount server

• Servers

• Storage rack
