PCIe to 2x 1394b + 1x 1394a Firewire Card,MM-PCE2213-2B1A_Shenzhen MMUI CO.,Ltd

微信二维码

PCIe to 2x 1394b + 1x 1394a Firewire Card,MM-PCE2213-2B1A

Works with Various Types of FireWire 800 (1394b) and 1394a Devices Including Portable Hard Disk, DV Camcorder, Digital Camera, CD-RW/DVD-ROM Drive and Other Audio/Video Devices.

Model：

MM-PCE2213-2B1A

Input Interface：

PCIe

Output Interface：

1394A + 1394B

Motherboard Slot：

PCIe

Transmission Rate:

800/400/200/100mbps

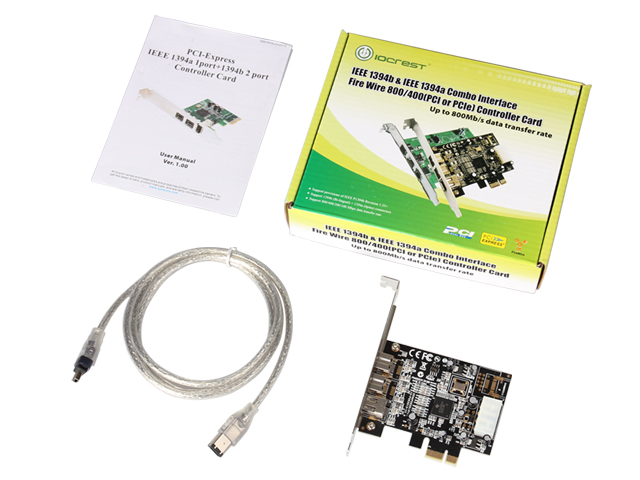

Auxiliary Accessories:

Low Profile Bracket,1394 Cable

Product Size:

65.3x56.55mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Specifacation

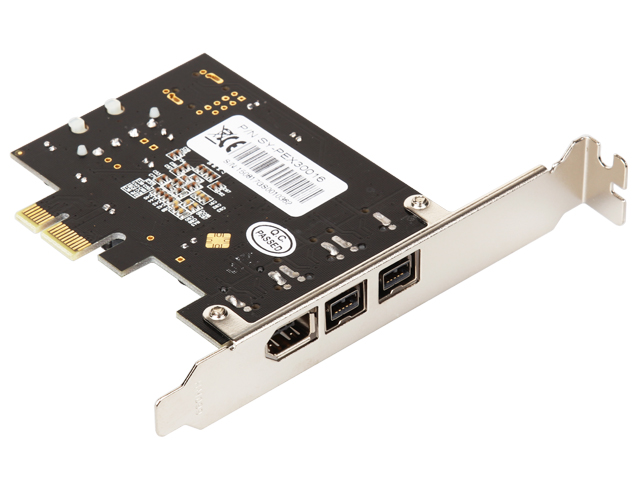

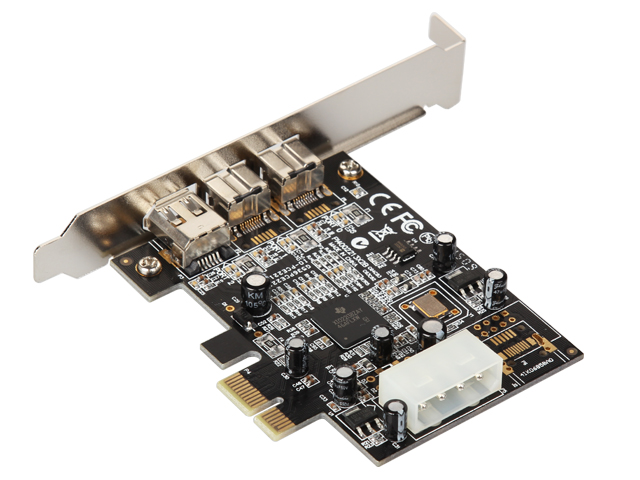

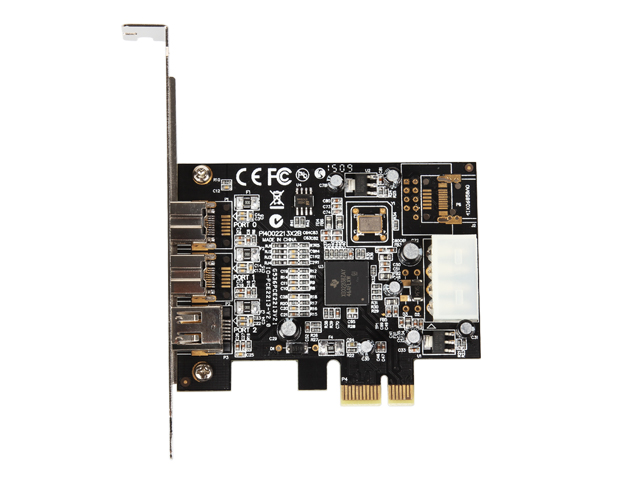

Ports:

1x 1394a (6-pin)
2x 1394b (9-pin, Bi-lingual)

Supports Data Transfer Rates of:

800Mbps
400Mbps
200Mbps
100Mbps

TI Chipset
No Driver required (plug-and-play)
Simultaneous Operation of Multiple High-performance Devices
Supports Hot-swapping and Plug-n-Play Connection of Peripheral Devices
Works with Various Types of FireWire 800 (1394b) and 1394a Devices Including Portable Hard Disk, DV Camcorder, Digital Camera, CD-RW/DVD-ROM Drive and Other Audio/Video Devices
1-Lane (x1) PCI-Express with Transfer Rate 2.5Gb/s Full Duplex Channel
Support Provisions of IEEE P1394b Revision 1.33+
Compliant with PCI-Express Revision 1.0a
Compliant with IEEE 1394 OpenHCI Specifications V1.0 and V1.1
Compliant with IEEE 1394-1995 for a High Performance Serial Bus
Compliant with IEEE 1394a-2000 Standard
Fully Backward Compatible to 1394a Specification
Fully Interoperable with FireWire, iLink, and SB1394 Implementation of IEEE 1394 Standard

Related Downloads

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
