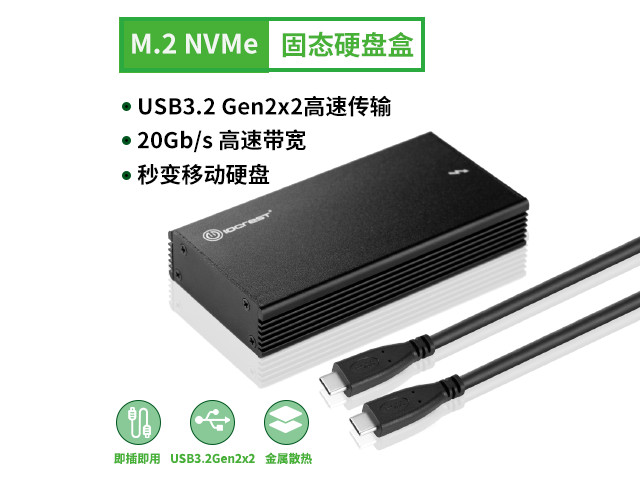

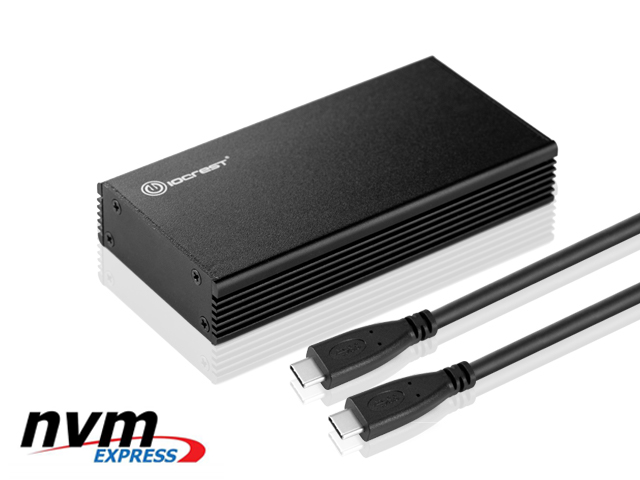

USB3.2 Gen2x2（20Gbps) to M.2(NVMe) SSD Enclosure,IO-ADA23640

Compliant with PCI Express Base Specification Revision 3.1a,Compliant with PCI Express M.2 Specification Revision 1.0,Support up to PCI Express Gen3 x4,Support up toUSB3.2 Gen2x2 backward compatible with USB 3.1.

Model：

IO-ADA23640

Input Interface：

USB

Output Interface：

M.2

Motherboard Slot：

Transmission Rate:

20Gbps

Auxiliary Accessories:

TYPE-C to TYPE-C Cable

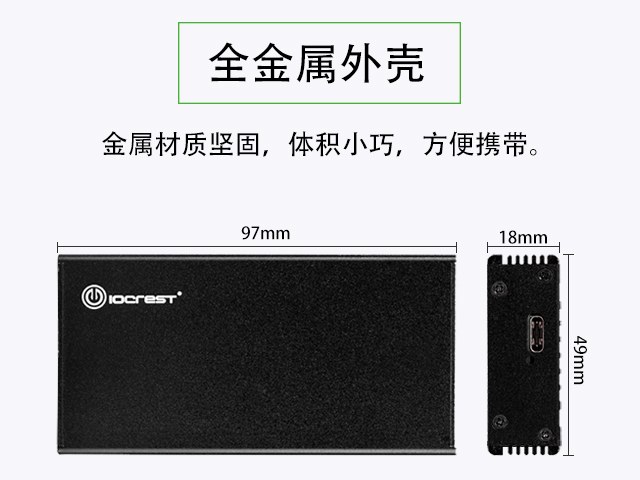

Product Size:

97x49mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features

•Compliant with PCI Express Base Specification Revision 3.1a

•Compliant with PCI Express M.2 Specification Revision 1.0

•Compliant with Universal Serial Bus 3.2 Revision 1.0

•Support up to PCI Express Gen3 x4

•Support up toUSB3.2 Gen2x2 backward compatible with USB 3.1

•Compliant with USB Type-C specification Release 1.3

•Integrated CC Logic for Type-C application

•Support BOT and UAS Protocol

•Support USB Link power management

•Support USB Hot Plug

•Support Spread Spectrum Clock Control

•Support unmap command set

•Support SCSI vendor specific command set

•Support PCI Express Link power management

•Support NVME power management

•Support NVME: SCSI Translation Revision 1.5

•Support TRIM command set

•Support NVME Error Reporting &Recovery

•S.M.A.R.T drive monitoring

•Compliant with NVM Express Base Specification Revision 1.3c

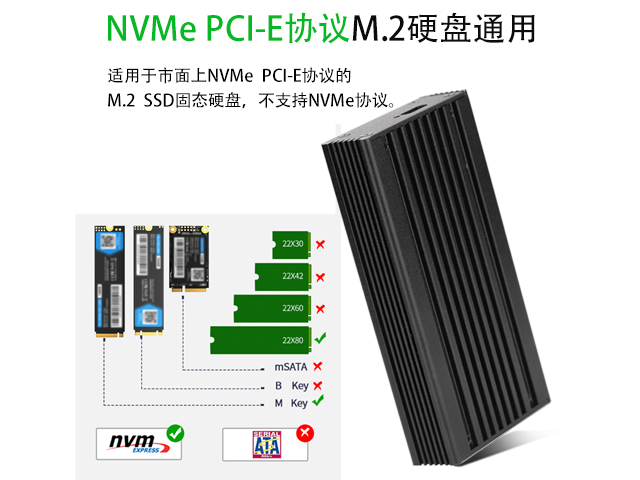

•Supports M.2 card size: 22*80

•Supports M.2 M Key or B+M key Card Type

Note:Support M.2(NGFF) PCIe SSD

The efficiency mainly depends on M.2(NGFF) SSD master IC and the size of the capacity

System Requirements

•Windows Server2008,2012,2016

•Windows 7, 8,10

•Linux, and MAC 10.10.5 or later version

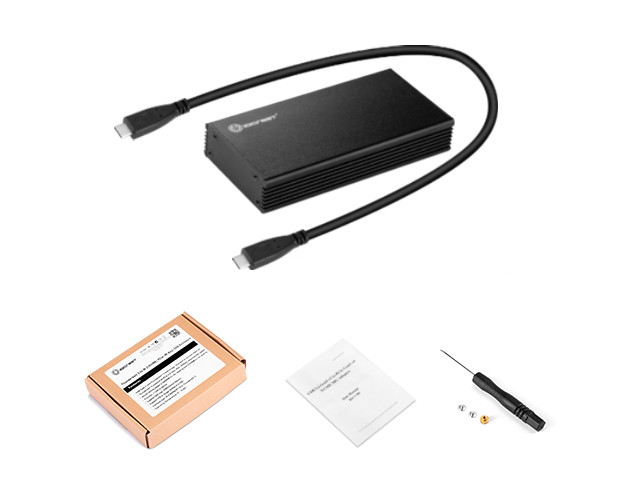

Package Contents

•1 x USB 3.2 Gen 2 to PCIe Gen3x4 NVME Adapter

•1 x User Manual

•1 x TYPE-C to TYPE-C Cable

Note: Contents may vary depending on country and market.

Related Downloads

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
