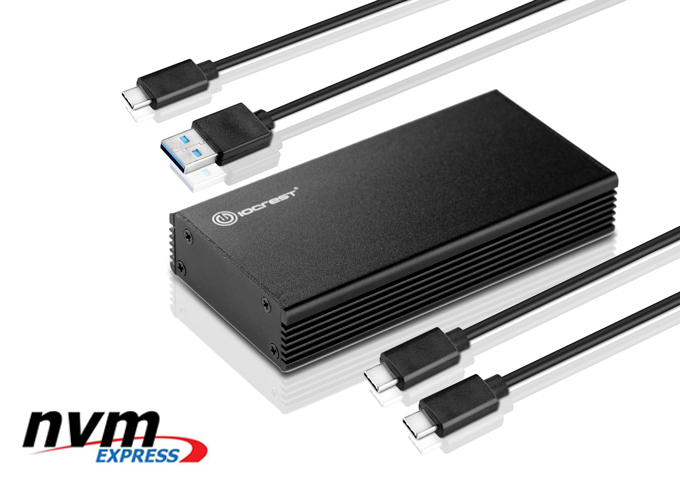

USB3.1 to M.2(NVMe) PCIe(M-Key) SSD Enclosure IO-ADA58300

Features•SupportsTRIMtotheSSD•IntegrateswithUSBType-CTMmultiplexer&configurationchannel(CC)logic•ComplieswithPCIExpressBaseSpecificationRevision3.1a•ComplieswithNVMExpress1...

Model：

IO-ADA58300

Input Interface：

USB

Output Interface：

M.2

Motherboard Slot：

Transmission Rate:

10Gbps

Auxiliary Accessories:

USB Cable,Screwdriver,M.2 Mounting material

Product Size:

97X49mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
•Supports TRIM to the SSD
•Integrates with USB Type-CTM multiplexer & configuration channel (CC) logic
•Complies with PCI Express Base Specification Revision 3.1a
•Complies with NVM Express 1.3
•Complies with USB 3.1 Gen 1 and Gen 2 Specification, USB Mass Storage Class, Bulk-Only Transport Specification (Revision 1.0)
•Complies with USB Attached SCSI Protocol (UASP) Specification (Revision 4)
•Supports USB Super-Speed/High-Speed/Full-Speed Operation
•Supports USB2.0/USB 3.1 Gen 1/2 power saving mode
•Supports M.2 card size: 22*30,22*42,22*60,22*80
•Supports M.2 M Key or B+M key Card Type
Note:Support M.2(NGFF) PCIe SSD
The efficiency mainly depends on M.2(NGFF) SSD master IC and the size of the capacity
System Requirements
•Windows Server2008,2012,2016
•Windows Vista, 7, 8,10
•Linux, and MAC 10.10.5 or later version
Package Contents
•1 x USB 3.1 Gen 2 to PCIe Gen3x2 NVME Adapter
•1 x User Manual
•1 x Type-C to Type-C Cable
•1 x Type-C to USB Cable
•1 x Screwdriver
•1 x M.2 Mounting material
Note: Contents may vary depending on country and market.
