Thunderbolt 3 to M.2(NVMe) PCIe(M-key) SSD Enclosure,IO-ADATB3M2-SSD

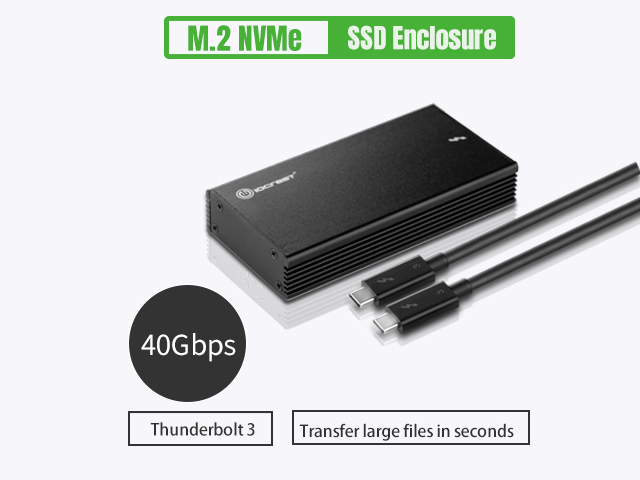

USB Type-C and Thunderbolt™3 technology: One port to connect them all,Thunderbolt 3 supports 4x PCIe 3.0 lane, Max. 40Gbps data transfer speed.Actual testing speed is 2600MB/s+ for reading and 2200MB/s+ for writing.

Model：

IO-ADATB3M2-SSD

Input Interface：

USB

Output Interface：

M.2

Motherboard Slot：

Transmission Rate:

40Gbps

Auxiliary Accessories:

Thunderbolt™ 3 Cable,Screwdriver,Mounting material

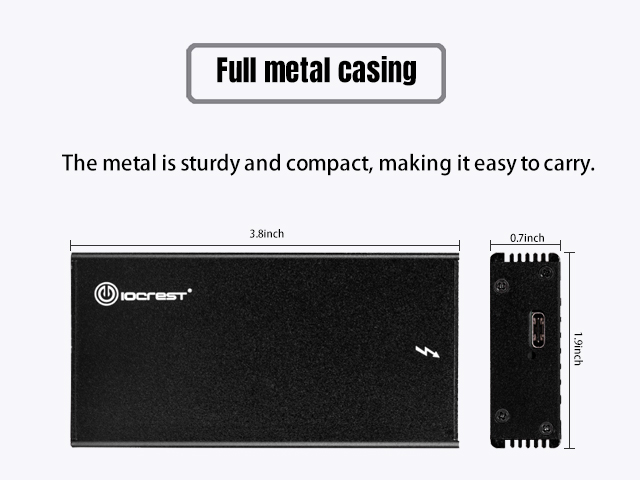

Product Size:

97x49mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
• USB Type-C and Thunderbolt™3 technology: One port to connect them all
• Thunderbolt 3 supports 4x PCIe 3.0 lane, Max. 40Gbps data transfer speed.
• Actual testing speed is 2600MB/s+ for reading and 2200MB/s+ for writing.
• Intel JHL6340 Thunderbolt 3(USB-C) to NVMe M.2 interface bridge chip
• Work with Thunderbolt 3 port only, NOT support standard USB-C (USB protocol) port
• Provides<12W to device.
• Support SSD size: 2280(22mm*80mm).
• Support 4TB or larger NVMe M.2 SSD.
• Support M-Key and B&M-Key NVMe M.2 SSD, NOT support SATA M.2 SSD, NOT support any MacBook Pro/Air/iMac SSD
• Interface type: M.2 NVMe PCI-E to Thunderbolt 3
• Operating Temperature: 0ºC to 65ºC

System Requirement
• Windows 8.1 or later
• Mac OS X 10.10 or later
• Mac with Thunderbolt 3 ports
Important Note: Windows computers require the latest BIOS and Thunderbolt drivers to support this product. Check with your computer manufacturer for update information

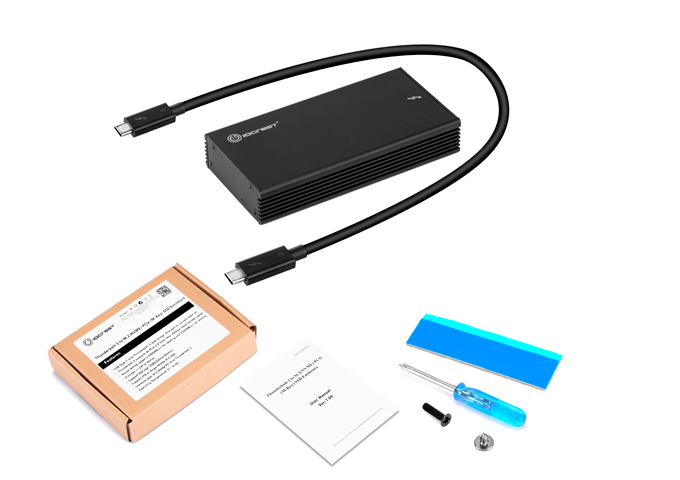

Package Contents
• 1 × Thunderbolt™ 3 to M.2 SSD Enclosure
• 1 × User Manual
• 1 × Thunderbolt™ 3 Cable
• 1 × Screwdriver
• 1 × M.2 Mounting material

Related Downloads

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
