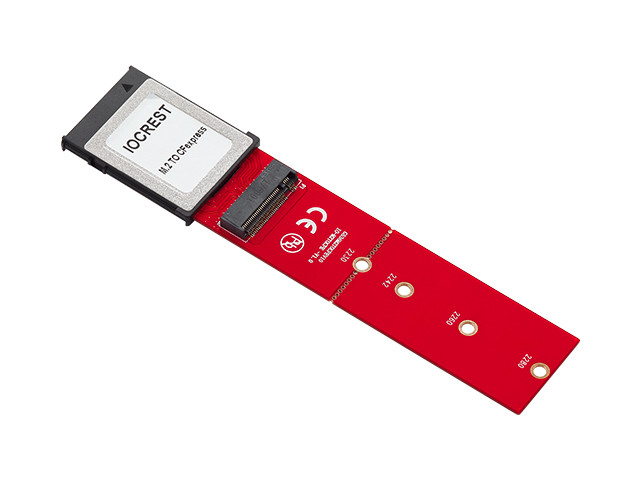

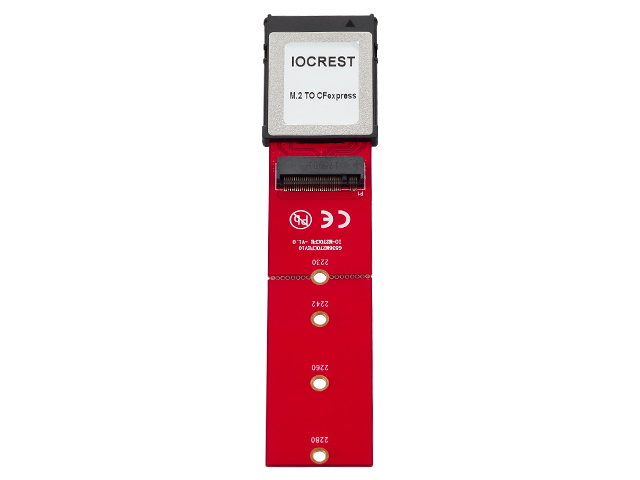

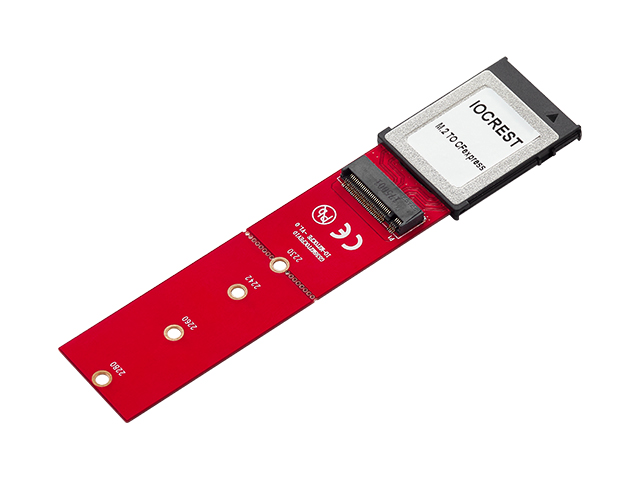

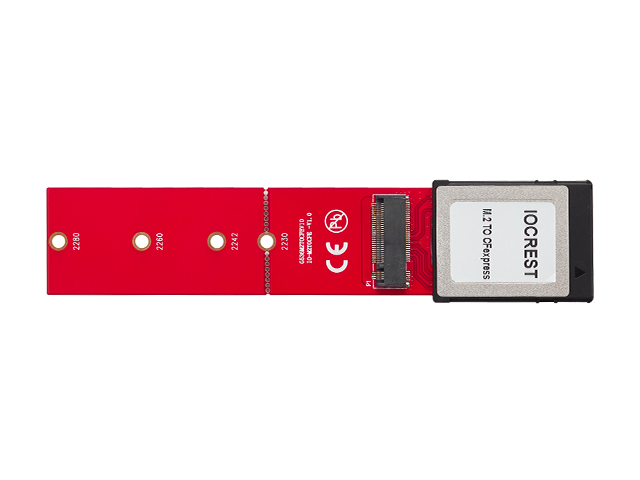

CFexpress To SSD M.2 NVME Card,IO-M2TOCFE

CFexpress cards are based on the PCIe? Gen 3 interface and uses established NVMe protocols to offer better efficiency, optimized power and performance for professional imaging and video markets.

Model：

IO-M2TOCFE

Input Interface：

CFexpress

Output Interface：

M.2

Motherboard Slot：

CFexpress

Transmission Rate:

2000MB/s

Auxiliary Accessories:

Mounting Screws, Heat Sink

Product Size:

129.85x26mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Introduce

• CFexpress cards are based on the PCIe® Gen 3 interface and uses established NVMe protocols to offer better efficiency, optimized power and performance for professional imaging and video markets.

Feature

• Interface: PCIe Gen.3 x2

• Protocol: NVMe 1.3

• TheoreticalPerformance: 16Gbps (2GB/s)

• Support speeds up to 2000MB/s

• For Microsoft Xbox Series X/S CFexpress to M.2 SSD external version

• Can be cut short by yourself

• Only support for Western Digital CH SN530 1TB

• For replacing Seagate Xbox XSX/S 1TB SSD next-generation external solid state drive

• Speed and function are no different from those for Seagate

• Convenient to replace your SSD, and easy to find the cause if there is a fault

• M.2 heats up very much, and the external type heat dissipation is good, and it will not slow down due to high heat. In order to further reduce the temperature, it can also be equipped with a heat sink.

• Convenient to transfer files when using an ordinary computer, without a dedicated CFexpress card reader

System Requirements

• Windows OS

• Linux

• MAC OS

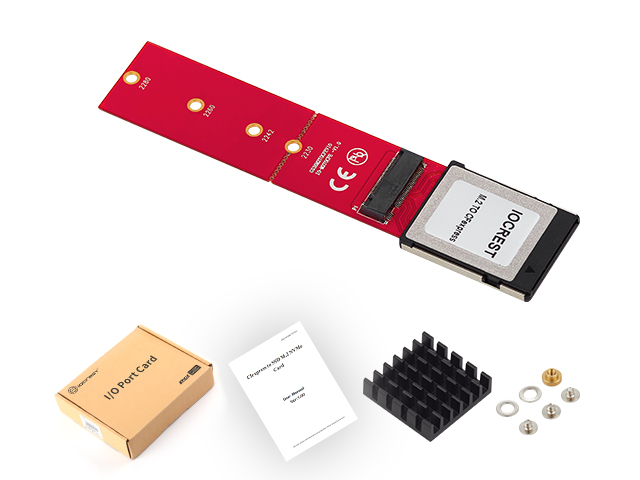

Package Contents

• 1 x CFexpress To SSD Adapter

• 1 x User Manual

• 1 x Mounting Screws

• 1 x Heat Sink

Related Downloads

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
