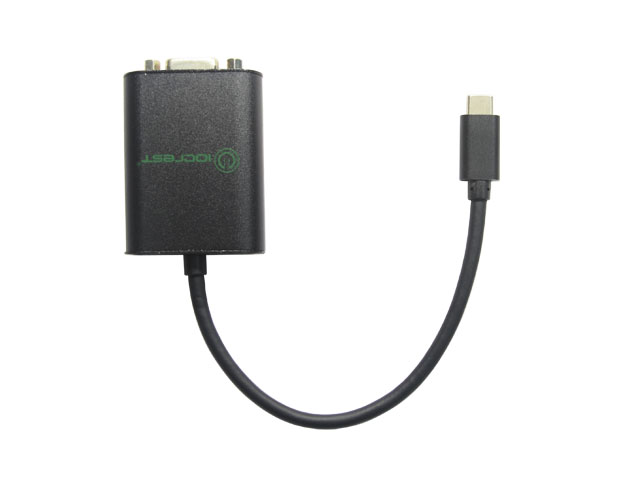

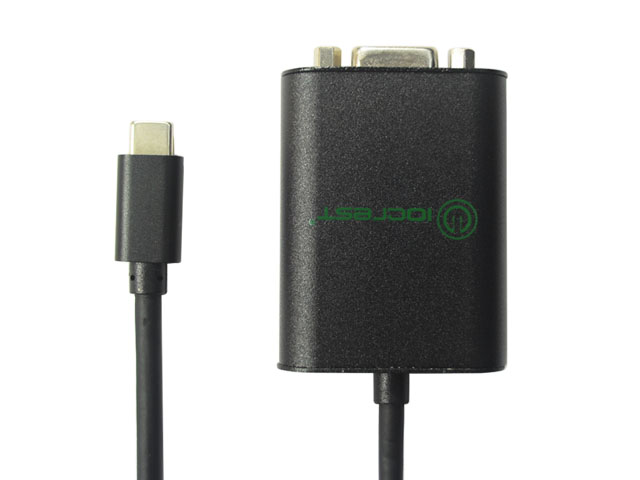

USB3.1 USB-C TO VGA Adapter (DP Alt Mode), IO-TCTOVGA

Compliant with VGA specification,Compliant with DisplayPort specification version 1.2 and Embedded DisplayPort (eDP) ,specification version 1.3. ,Support 2 Main Link Lanes at either 1.62Gb/s or 2.7Gb/s link rate

Model：

IO-TCTOVGA

Input Interface：

USB

Output Interface：

VGA

Motherboard Slot：

Transmission Rate:

Auxiliary Accessories:

Product Size:

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
• Compliant with VGA specification
• Compliant with DisplayPort specification version 1.2 and Embedded DisplayPort (eDP)
specification version 1.3.
• Support 2 Main Link Lanes at either 1.62Gb/s or 2.7Gb/s link rate
• Support analog RGB output for VGA with Triple 9-bit DAC up to 200MHz pixel rate. Sync
signals can be provided in separated or composite manner.
• Support VESA and CEA timing standards u up to 1920x1200@ 60Hz or 2048x1152@60Hz with
reduced blanking
• VGA output is compliant with VESA VSIS v1r2 specification
• Supports Enhanced Framing Mode
• Support eDP Authentication: Alternative Scramble Seed Reset and Alternative Framing
• DAC connection detection supported
• DP input detection supported
• Support Auto Power Saving mode and low stand-by current
• USB 3.1 USB-C (USB-C) to VGA Adapter (DP Alt Mode) for Apple The New Macbook/
Chromebook Pixel/Dell XPS 13/Yoga 900/Asus Zen AIO/Lumia 950/950XL
System Requirements
• Windows 7, Windows 8, Windows8.1, Windows 10, Windows XP/Vista, Windows Server 2008,

• Mac OSX v10.7
• linux

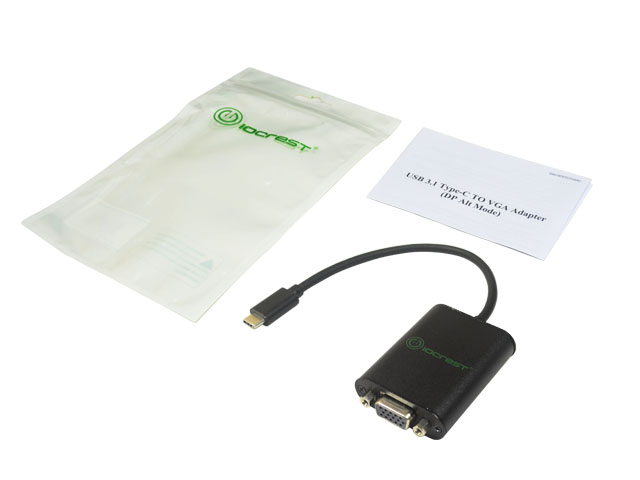

Package Contents
• 1 × USB3.1 USB-C TO VGA Cable Adapter
• 1 × User Manual
