PCIe to 2 Ports PS2 Adapter,IO-PCE2-PS2_Shenzhen MMUI CO.,Ltd

微信二维码

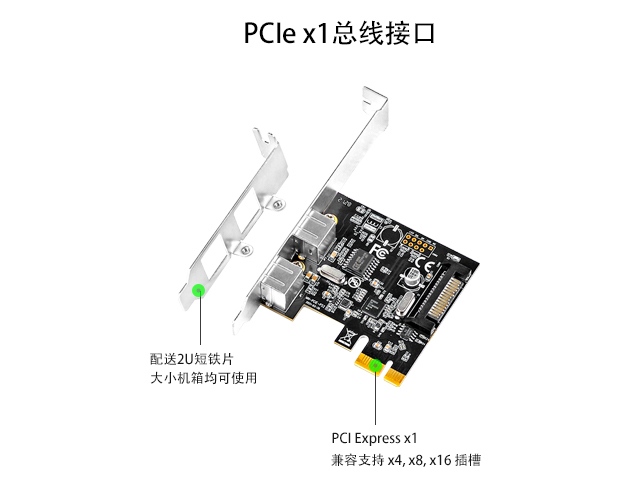

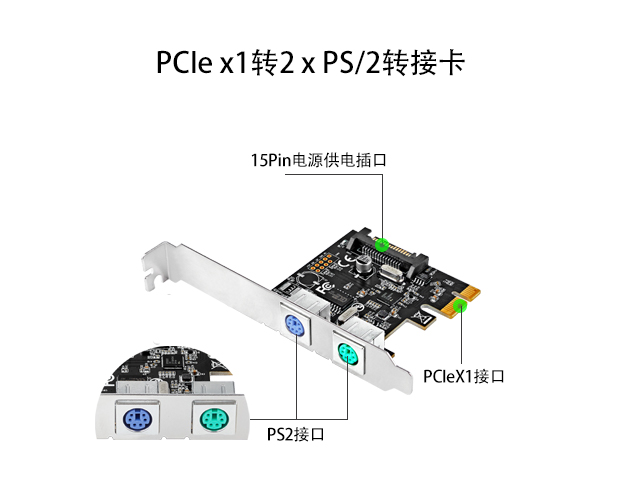

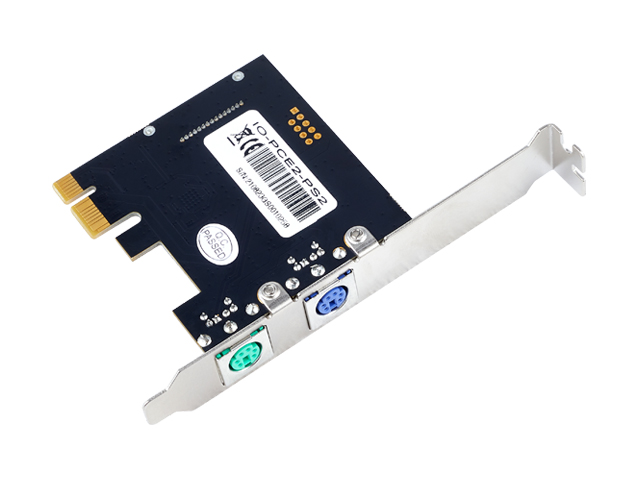

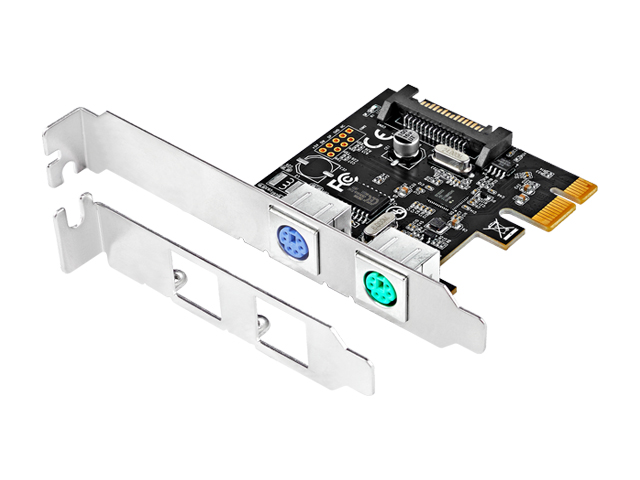

PCIe to 2 Ports PS2 Adapter,IO-PCE2-PS2

Built-in 2 PS2 interfaces，Interface: PS2 interface *2，Bus interface: PCIE slot，No need for external power supply.

Model：

IO-PCE2-PS2

Input Interface：

PCIe

Output Interface：

PS2

Motherboard Slot：

PCIe

Transmission Rate:

5Gbps

Auxiliary Accessories:

Low Profile Bracket

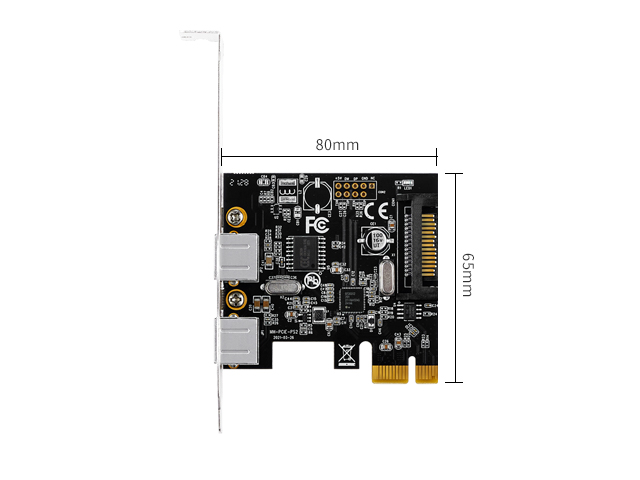

Product Size:

65.3X64mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features

• Support one lane PCI Express

• Compliant with the PCI Express Base Specification Revision 2.0

• Supports the PCI Bus Power Management Interface Specification Revision 1.2

• Compliant with the Universal Serial Bus 3.0 specification Revision 1.0

• Support PCI Express Card Electromechanical 2.0 specification.

• Compliant with USB3.0 Specification Revision 1.0

• Compliant with USB Specification Revision 2.0

• Compliant with xHCI specification Revision 1.0

• Interface two PS/2 devices to USB

• PS/2 ports support 3 dimensions 3keys wheel mouse and multimedia keyboard function

• Built-in 65c02 8 Bit CPU

• Supports 1 low speed devise address and 3 endpoints

• 8 bytes FIFO for each endpoint

• Built-in power on reset & watchdog timer reset

• Support device hot swap

• PS/2 ports are auto selectable and hot swappable

• Mice or keyboard can be used in either port

• Support small chassis

System Requirements

• Windows, Linux and MAC OS Platform

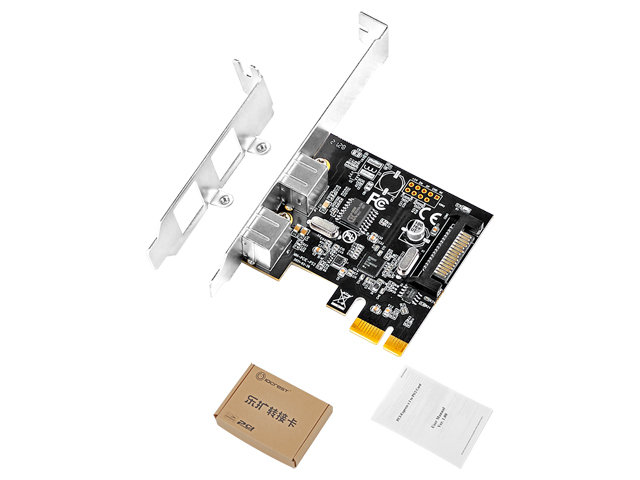

Package Contents

• 1 x PCIE TO PS/2 Card

• 1 x User Manual

• 1 x Low Profile Bracket

Related Downloads

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
