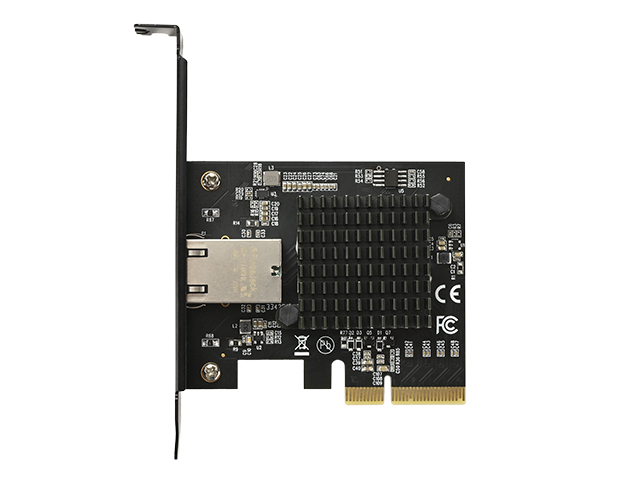

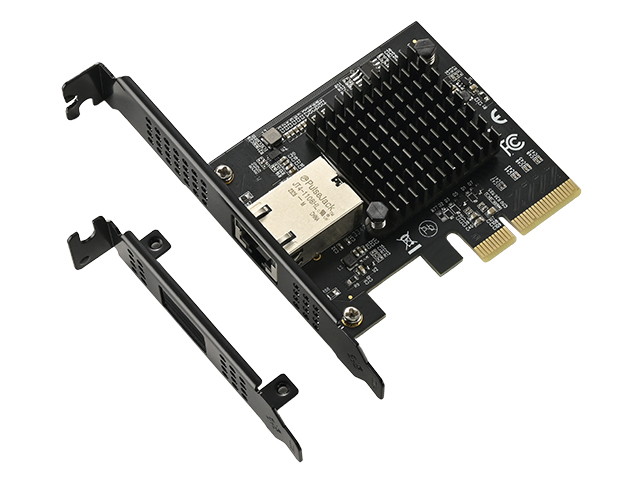

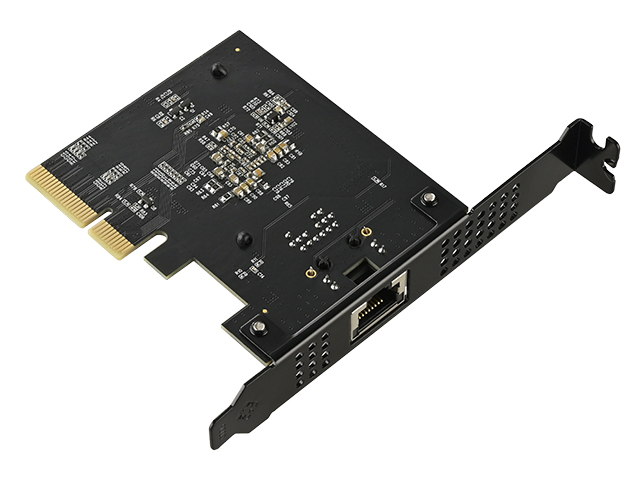

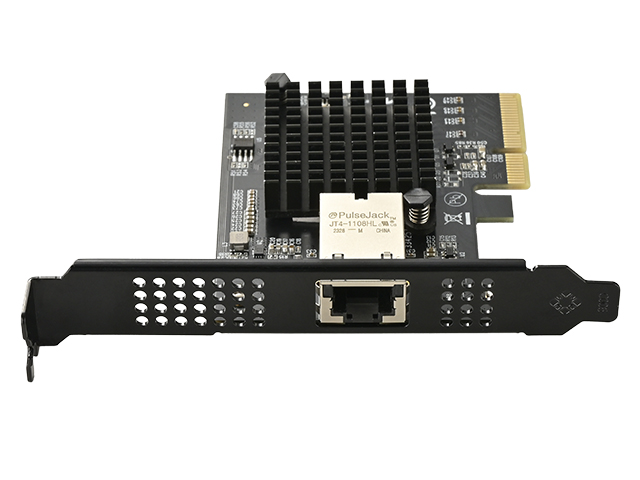

PCIe to single 10G Ethernet network Card,IO-PCE113-GLAN

Supports bus widths: Gen4 x1, Gen3 x4, x2, x1,Support PCI Express Gen-III x4,Supports line rates up to 16.0 GT/s, 8.0 GT/s, and 5.0 GT/s per lane
,Jumbo frame support up to 16 KB,Support 10G/5G/2.5G/1000M/100M LAN speed.

Model：

IO-PCE113-GLAN

Input Interface：

PCIe

Output Interface：

RJ45

Motherboard Slot：

PCIe

Transmission Rate:

10Gbps

Auxiliary Accessories:

Low profile bracket

Product Size:

79.3x68.9mm

Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features

• Supports bus widths: Gen4 x1, Gen3 x4, x2, x1

• Support PCI Express Gen-III x4

• Supports line rates up to 16.0 GT/s, 8.0 GT/s, and 5.0 GT/s per lane

• Jumbo frame support up to 16 KB

• Support 10G/5G/2.5G/1000M/100M LAN speed

• 2.5W typical 10GBASE-T operating power per port: 100 meters of Cat 6A

• 1.5W typical 5GBASE-T operating power per port

• 1W typical 1GBASE-T operating power per port

• Audio Video Bridging (AVB) and PTP/1588v2

• Synchronous Ethernet (Sync-E), ITU-T standard in accordance with IEEE

• Supports Message-Signaled Interrupts (MSI and MSI-X), and legacy INTx PCIe interrupts

• Support for the Network Controller Sideband Interface (NC-SI)

• Management Component Transport Protocol(MCTP)

• IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair

• IEEE 802.3bz 2.5/5GBASE-T

• IEEE 802.3ab 1000BASE-T Gigabit Ethernet

• IEEE 802.3u 100BASE-TX Fast Ethernet

• IEEE 802.1Q VLANs

• IEEE 802.3x Full Duplex and flow contro

• IEEE 802.3az - Energy Efficient Ethernet (EEE)

• Support Preboot Execution Environment (PXE)

• FCoE No

• Operation Temperature :0°C to +108°C；

• Storage Temperature：-40°C to +110°C

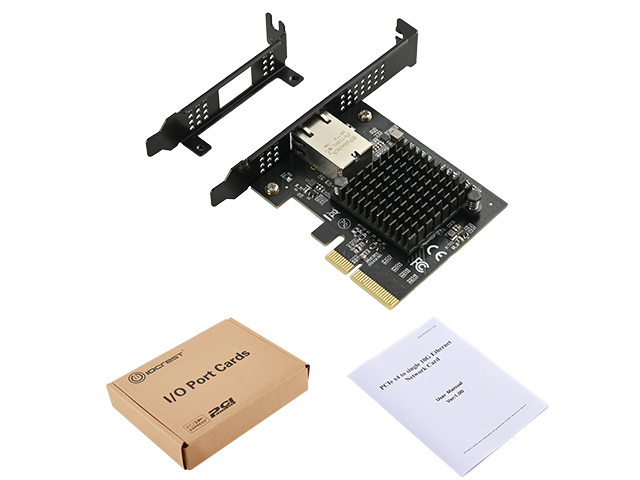

Package Contents

• 1 × PCIe x4 to single 10G Ethernet network Card

• 1 × User Manual

• 1 x Low Profile Bracket

System Requirements:

• Microsoft® Windows®, 10/11 ,Server 2022

• RHEL/Centros7.3/7.6/7.9/8.2/8.3

• Deepin 15.11/20/20/20.6

• Ubuntu 16.04.3/18.04.5 and later releases

Related Downloads

Driver Download

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
