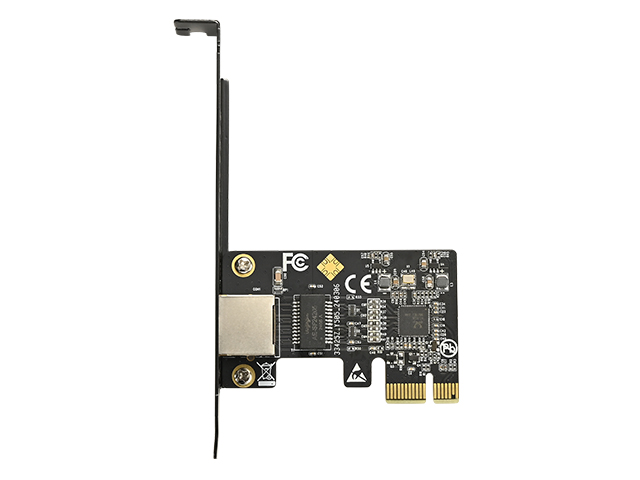

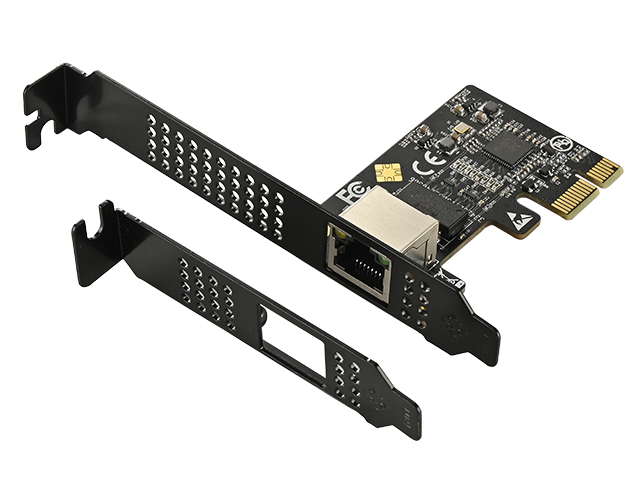

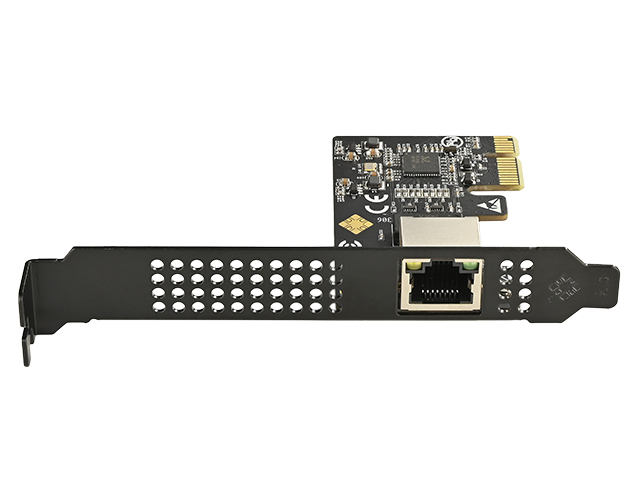

PCIe to 10/100/1000M/2.5G/5G Ethernet Controller Card,IO-PCE8126-GLAN

Supports PCI Express revision 3.1,Supports 1-Lane 2.5/5/8Gbps PCI Express Bus,Supports 5G Lite (2.5G data rate) mode, 2.5G Lite (1G data rate) and GIGA Lite (500M data rate) mode.

Model：

IO-PCE8126-GLAN

Input Interface：

PCIe

Output Interface：

RJ45

Motherboard Slot：

PCIe

Transmission Rate:

5G

Auxiliary Accessories:

Low profile bracket

Product Size:

Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features

• Supports PCI Express revision 3.1

• Supports 1-Lane 2.5/5/8Gbps PCI Express Bus

• Supports 5G Lite (2.5G data rate) mode, 2.5G Lite (1G data rate) and GIGA Lite (500M data rate) mode

• Auto-Negotiation with Extended Next Page capability (XNP)

• Compatible with NBASE-T TM Alliance PHY Specification

• Supports pair swap/polarity/skew correction

• Supports hardware ECC (Error Correction Code) function

• Supports hardware CRC (Cyclic Redundancy Check) function

• Supports PCI MSI (Message Signaled Interrupt) and MSI-X

• Supports power down/link down power saving/PHY disable mode

• Supports ECMA-393 ProxZzzy Standard for sleeping hosts

• Compatible with IEEE 802.3, IEEE 802.3u, IEEE802.3ab

• Supports IEEE 802.1Qav credit-based shaper algorithm

• Supports IEEE 802.1P Layer 2 Priority Encoding

• Supports IEEE 802.1Q VLAN tagging

• Supports IEEE 802.1ad Double VLAN

• Supports IEEE 802.3az (Energy Efficient Ethernet)

• Supports IEEE 802.3bz

• Supports Full Duplex flow control (IEEE 802.3x)

• Supports jumbo frame to 16K bytes

• Supports Wake-On-LAN (WoL)

• Operation Temperature :0°C to +70°C；

• Storage Temperature：-55°C to +125°C

System Requirements:

• Microsoft® Windows®, 10,11

• Linux Kernel, 3.10 and later releases

• MacOS 10.7 or Later

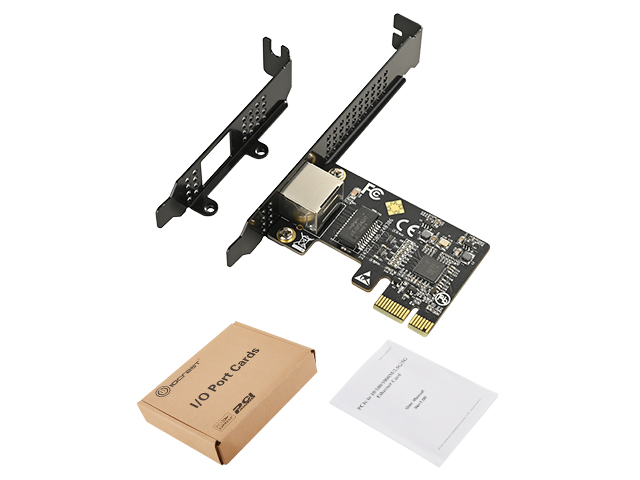

Package Contents

• 1 × PCI Express to 10/100/1000M/2.5G/5G Ethernet Controller Card

• 1 × User Manual

• 1 x Low Profile Bracket

Note: Contents may vary depending on country/market
