Features
• Integrated 10/100/1000M transceiver
• Supports Giga Lite (500M) mode
• Auto-Negotiation with Next Page capability
• Supports PCI Express 1.1
• Supports pair swap/polarity/skew correction
• Crossover Detection & Auto-Correction
• Supports 1-Lane 2.5Gbps PCI Express Bus
• Supports hardware ECC (Error Correction Code) function
• Supports hardware CRC (Cyclic Redundancy Check) function
• Transmit/Receive on-chip buffer support
• Supports PCI MSI (Message Signaled Interrupt) and MSI-X
• Fully compliant with IEEE802.3, 802.3u and 802.3ab
• Supports IEEE 802.1P layer 2 Priority Encoding
• Supports 802.1Q VLAN tagging
• Supports IEEE 802.3az-2010(EEE)
• Supports Full Duplex flow control (IEEE.802.3x)
• Supports jumbo frame to 9K bytes
• Supports quad core Receive-Side Scaling(RSS)
• Supports Protocol Offload(ARP&NS)
• Supports Microsoft WPI (Wake Packet Indication)
• Supports ECMA-393 ProxZzzy Standard for sleeping hosts
System Requirements
• Windows ME,98SE, 2000, XP, Vista, 7, 8,10 and 11 32-/64-bit
• Windows Server 2003, 2008, 2012and 2016 32 -/64-bit
• Linux, MAC OS and DOS
• PCI Express-enabled system with an available PCI Express slot

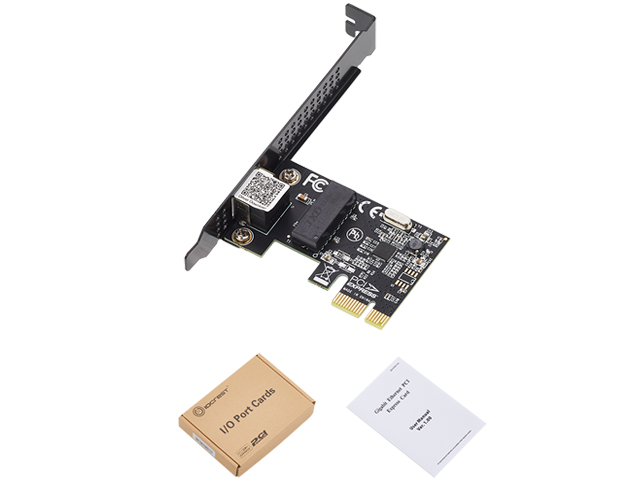

Package Contents
• PCI-Express to 10 /100/1000M Ethernet Card
• User Manual
Note: Contents may vary depending on country/market
