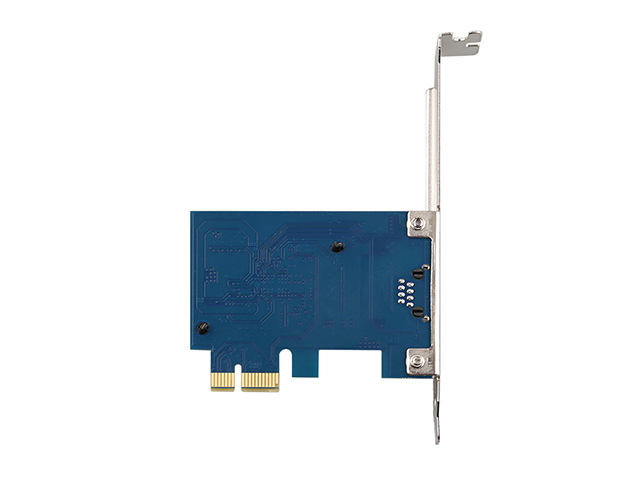

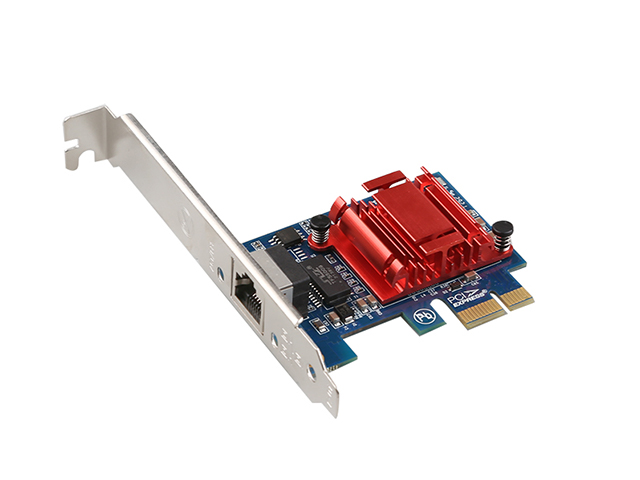

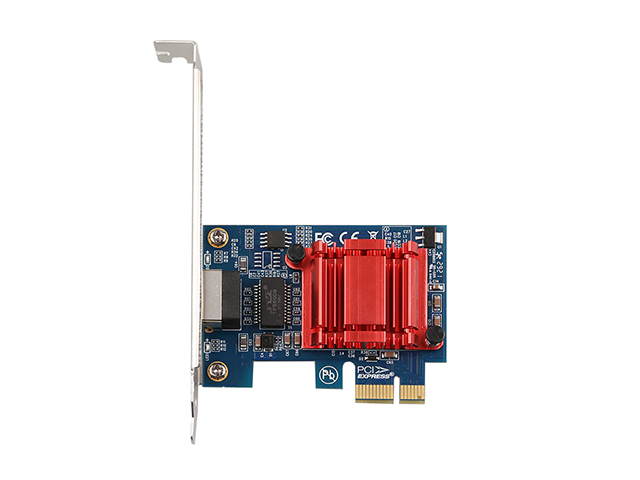

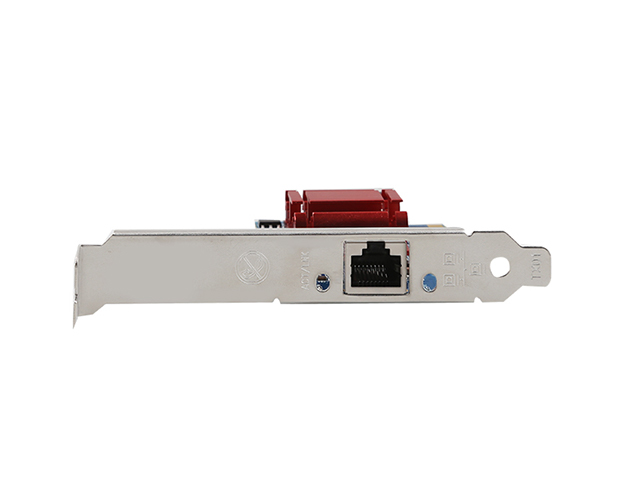

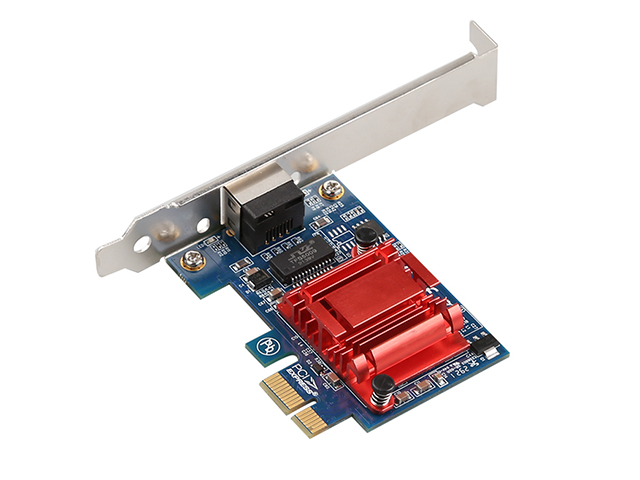

PCIe to 1 Port Gigabit NIC Adapter Network Card,IO-PCE5751-GLAN

The PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface. Compliant with IEEE 802.3/u/ab standards.

Model：

IO-PCE5751-GLAN

Input Interface：

PCIe

Output Interface：

RJ45

Motherboard Slot：

x1 lane PCI Express, operable in x1, x4, x8 and x16 slots

Transmission Rate:

1000M

Auxiliary Accessories:

Low profile bracket

Product Size:

71.5x54.5mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

The PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface. Compliant with IEEE 802.3/u/ab standards, and with support for 9.5K Jumbo Frames, VLAN tagging, this Gigabit NIC Adapter offers effective network performance.

Features

• A single 10/100/1000 Mbps compatible RJ45 Ethernet port

• Link and Activity LED indicators

• Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards

• Supports IEEE 802.1Q VLAN tagging, and IEEE 802.3x Fully Duplex Flow Control

• Full and half duplex support

• PXE network boot support

• Jumbo frame supports up to 9.5Kbytes

• Complies with Microsoft and Linux platforms

• Industry Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab

• Humidity 20~80% RH

• Operating Temperature 5°C to 50°C (41°F to 122°F)

• Storage Temperature -25°C to 70°C (-13°F to 158°F)

OS Compatibility

Windows® 7, 8.x, 10, 11 Windows Server® 2008 R2, 2012, 2016, 2019 Linux 2.6.x to 5.x

Included in Package

1 x Gigabit Ethernet PCI Express Card

1 x Low profile bracket

Related Downloads

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
