PCIe to Wireless 802.11ax WIFI6 and Bluetooth5.0 Network Card,IO-PCE200-WB_Shenzhen MMUI CO.,Ltd

微信二维码

PCIe to Wireless 802.11ax WIFI6 and Bluetooth5.0 Network Card,IO-PCE200-WB

supports the latest 802.11ax technology, such us OFDMA, 1024QAM, Target Wake Time, deliver from 80MHz to 160MHz higher peak data rates up to 2.4Gbps, and up to 4X capacity improvement in dense or congested environments comparing to 802.11ac.

Model：

IO-PCE200-WB

Input Interface：

PCIe

Output Interface：

WIFI

Motherboard Slot：

PCIe

Transmission Rate:

2.4G & 5G

Auxiliary Accessories:

USB Cable,Antennas,Low Profile Bracket,Driver CD

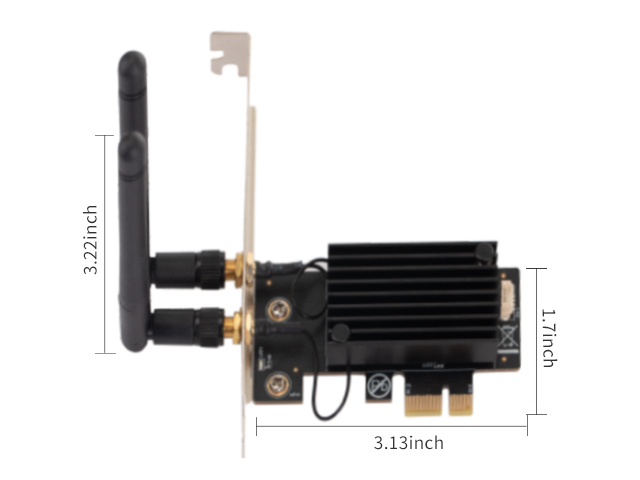

Product Size:

79.6x43.1mm;82mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features

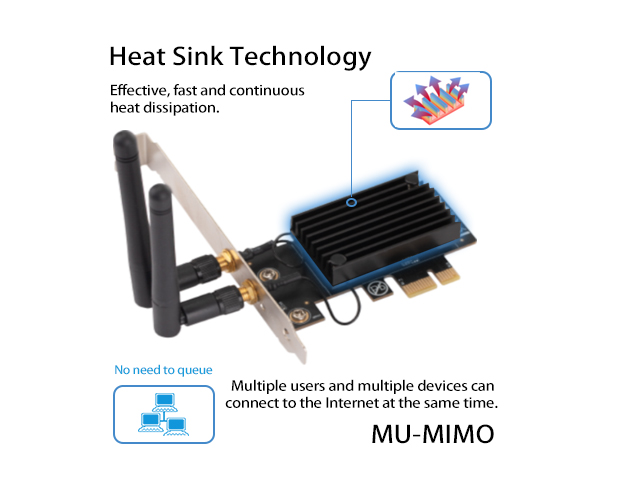

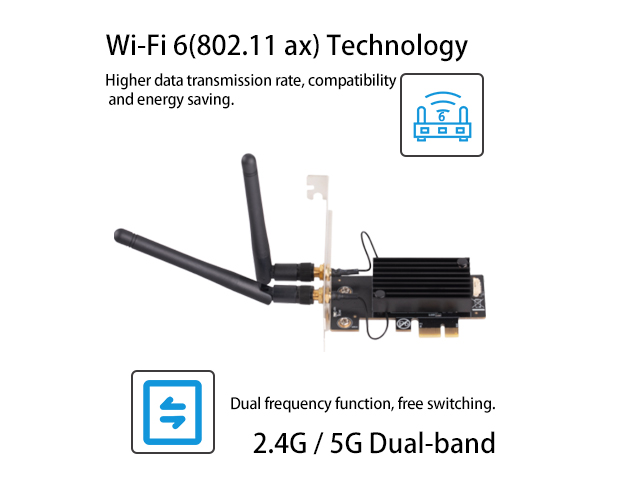

•Intel Wi-Fi 6 Technology ---- Based on Intel AX200 chipset, this WiFi 6 PCIe card supports the latest 802.11ax technology, such us OFDMA, 1024QAM, Target Wake Time, deliver from 80MHz to 160MHz higher peak data rates up to 2.4Gbps, and up to 4X capacity improvement in dense or congested environments comparing to 802.11ac. With this PCIE Wi-Fi Card, you can enjoy 4K/8K movies, large file transfer, and smart home devices without dropped connections.
•MU-MIMO and 160MHz Channels for Better Experience ---- MUMIMO effectively improves signal gain when multiple users are sending and receiving at the same time. Deliver from 80 MHz to 160 MHz, double throughput, ultra-low latency and uninterrupted connectivity.
•Bluetooth5 ---- Provides 4x5 range over Bluetooth4.2 using the same Tx power, enabling coverage throughout the home. Doubles data rates speed for faster transmissions thereby reducing the overall power consumption.( Note: you have to insert the power cable to the Motherboard 9-pin interface for Bluetooth function )

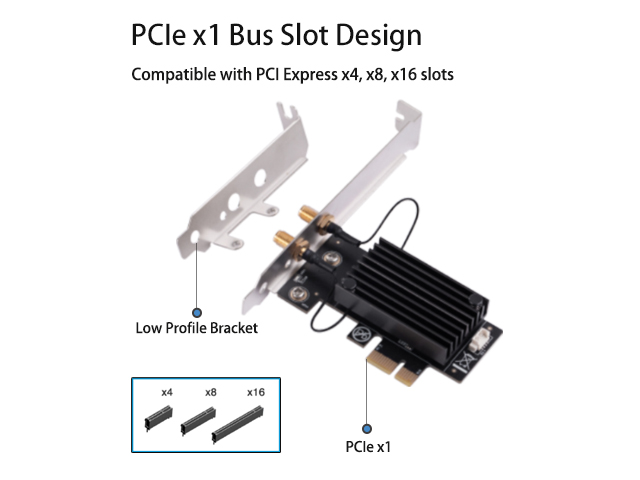

•Wide Compatibility ---- Support Windows 10 64-bit,Linux.PCIe X1 slot has the best compatibility.802.11AX is backwards compatible with 11ac and 11n,works with existing WiFi devices and new WiFi 6 devices like iPhone 11,iPhone 11 Pro.
System Requirements
• Windows®10(32/64)
• Mac OS® 10.x
• Linux 2.4.x and later

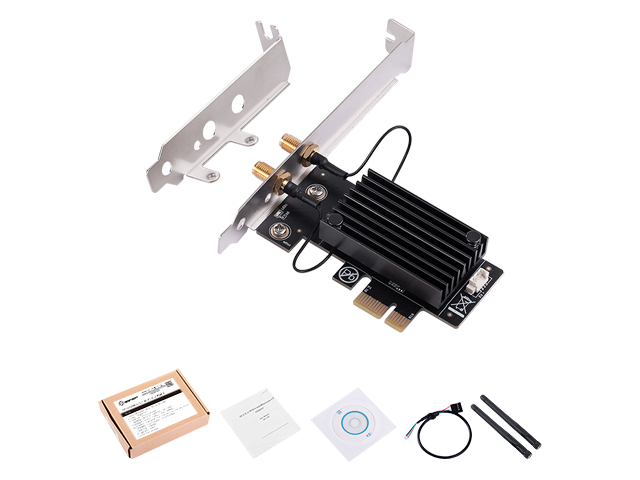

Package Contents
• 1 x Wireless PCI-E adapter Card
• 1 x Low Profile Bracket
• 1 x User Manual
• 1 x USB Cable
• 1 x Driver CD
• 2 x Antennas

Related Downloads

Driver Download

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
