PCIe Single-port RJ45 10G Ethernet network adapter ,IO-PCE9710-GLAN_Shenzhen MMUI CO.,Ltd

微信二维码

PCIe Single-port RJ45 10G Ethernet network adapter ,IO-PCE9710-GLAN

PCI Express Rev 2.0 specification x4,x8,x16 Interface,NBASE-T Alliance draft specification compliant,10G/5G/2.5G/1000M/100M auto negotiation support.

Model：

IO-PCE9710-GLAN

Input Interface：

PCIe

Output Interface：

RJ45

Motherboard Slot：

PCIex4,x8,x16

Transmission Rate:

10G

Auxiliary Accessories:

Low Profile Bracket,Driver CD

Product Size:

81.6x68mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
•PCI Express Rev 2.0 specification x4,x8,x16 Interface
•NBASE-T Alliance draft specification compliant
•10G/5G/2.5G/1000M/100M auto negotiation support
•Supports Jumbo frame (9K)
•Supports RFC2819 RMON MIB statistics
•Supports IEEE 802.3ad Link Aggregation.
•Full IEEE Std 802.3ae Compliant
•Supports IEEE 802.3az (EEE)
•Supports IEEE 802.1q VLAN
•Supports Multicast
•Operating Temperature:0ºC to 70ºC
•Storage Temperature:-40ºC to 85ºC
Power consumption (Full bidirectional traffic, 100m cable):
•10G speed:6.1W /5G speed:3.6 W
•2.5G speed:3.0W /1G speed:2.7W /100M speed:2.5W
System Requirement
•Windows Server 2008R2,2012R2,2016
•Windows 7,8,8.1,10 32 and 64-bit systems
•Linux 2.6, Linux 3.x, Linux 4.x 32 and 64-bit systems
•vmware® ESXi 6.0, ESXi 6.5
•Microsoft Hyper-V
•Apple macOS 10.12

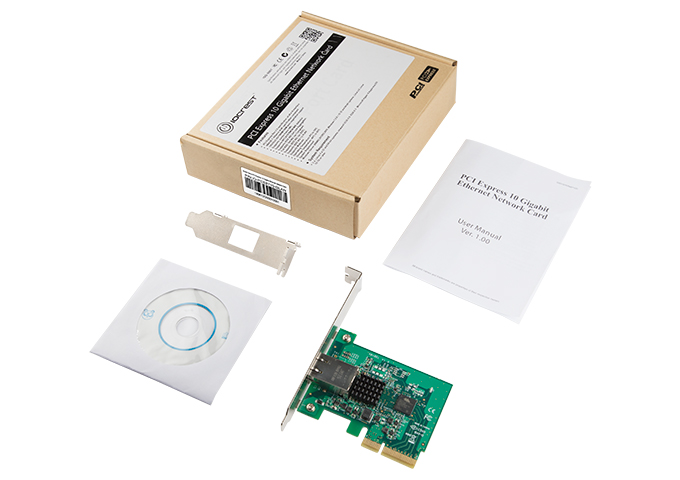

Package Content
1 x PCI Express 10 Gigabit Ethernet Network Card
1 x User Manual
1 x Low Profile Bracket

Related Downloads

Driver Download

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
