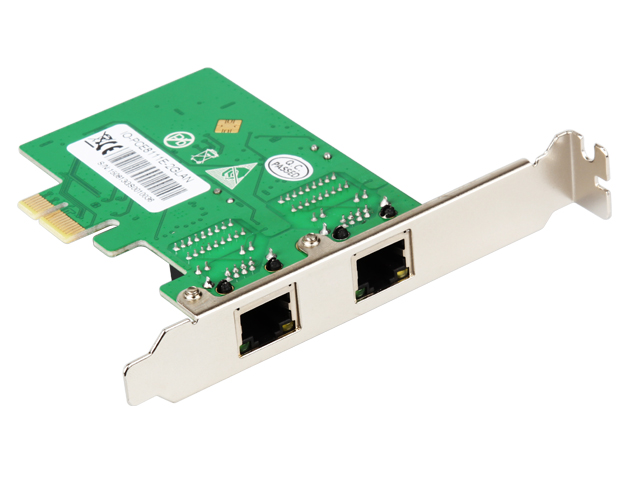

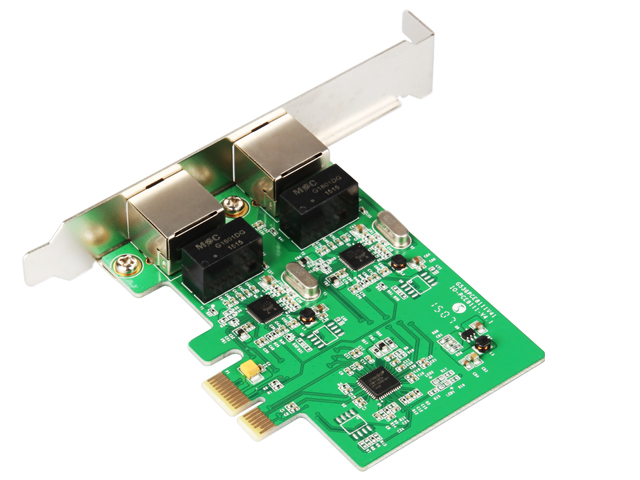

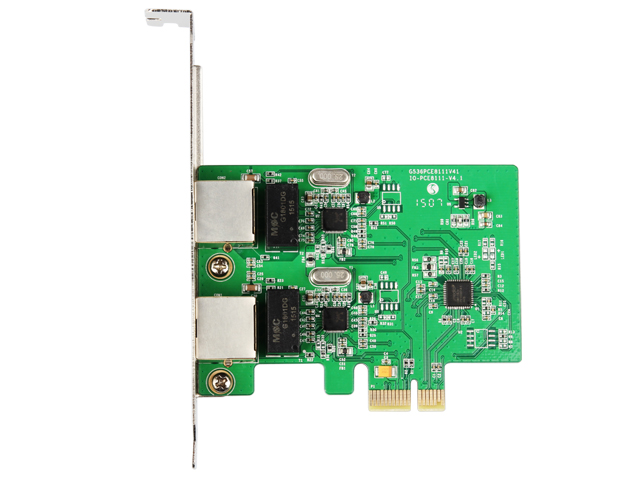

PCIe Dual Gigabit Ethernet Controller Card,IO-PCE8111-2GLAN

Supports 10/100/1000Mbps data rate auto negotiation operation,Supports PCI Express 1.1,Supports pair swap/polarity/skew correction,Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab.

Model：

IO-PCE8111-2GLAN

Input Interface：

PCIe

Output Interface：

RJ45

Motherboard Slot：

PCIe

Transmission Rate:

1000M

Auxiliary Accessories:

Low Profile Bracket,Driver CD

Product Size:

86x65.8mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Features
Standard Compliant
-PCI express base SPEC 2.0 and backward compatible with SEPC 1.1 & 1.0a
-PCI Power management SPEC 1.2

Supports 10/100/1000Mbps data rate auto negotiation operation
Supports PCI Express 1.1
Supports pair swap/polarity/skew correction
Crossover Detection & Auto-Correction
Wake-on-LAN and remote wake-up support
Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send v1 and Large send v2) support
Supports EMAC-393 ECMA ProxZzzy Standard for sleeping hosts
Supports Full Duplex flow control (IEEE 802.3x)
Supports jumbo frame to 9K bytes
Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supports IEEE 802.1P Layer 2 Priority Encoding
Supports IEEE 802.1Q VLAN tagging
Supports IEEE 802.3az-2010 (EEE)
Supports power down/link down power saving/PHY disable mode Built-in switching regulator
Supports PCI MSI (Message Signaled Interrupt) and MSI-X
Supports quad core Receive-Side Scaling (RSS)
Supports Protocol Offload (ARP & NS)
Supports Dual 1-Lane 2.5Gbps PCI Express Bus
Supports hardware ECC (Error Correction Code) function
Supports hardware CRC (Cyclic Redundancy Check) function

System Requirements
>Windows ME,98SE, 2000, XP, Vista, 7 and 8 32-/64-bit
>Windows Server 2003, 2008 and 2012 32 -/64-bit
>Linux, MAC OS and DOS
>PCI Express-enabled system with an available PCI Express slot

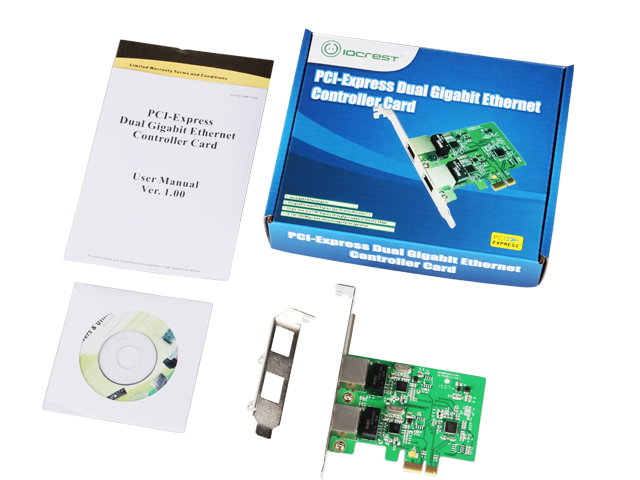

Package Contents
> PCI Express dual Gigabit Ethernet controller card x 1
> User Manual x 1
> Driver CD x 1

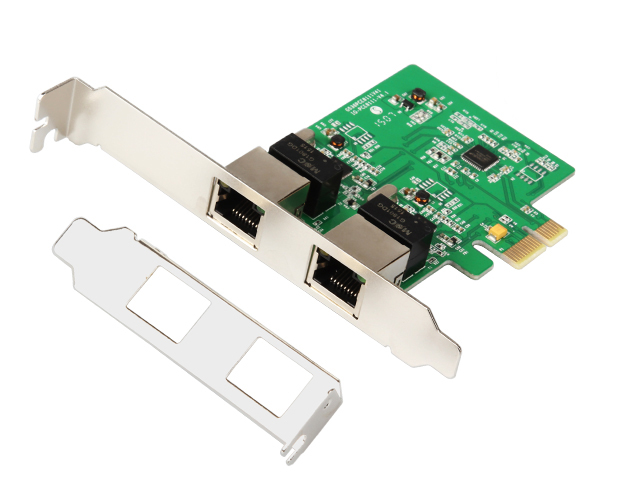

> Low-profile bracket x 1
