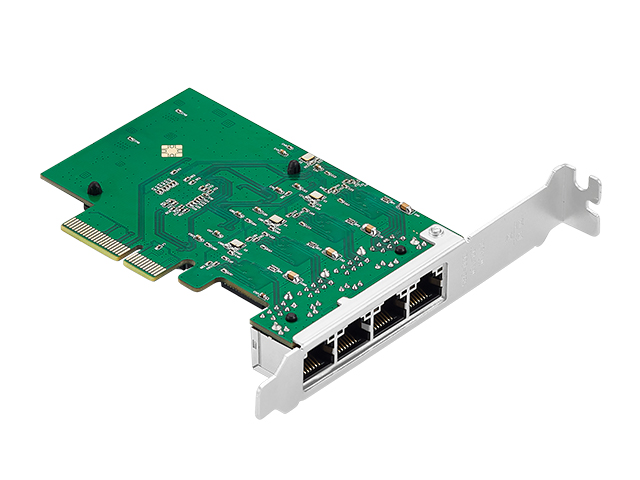

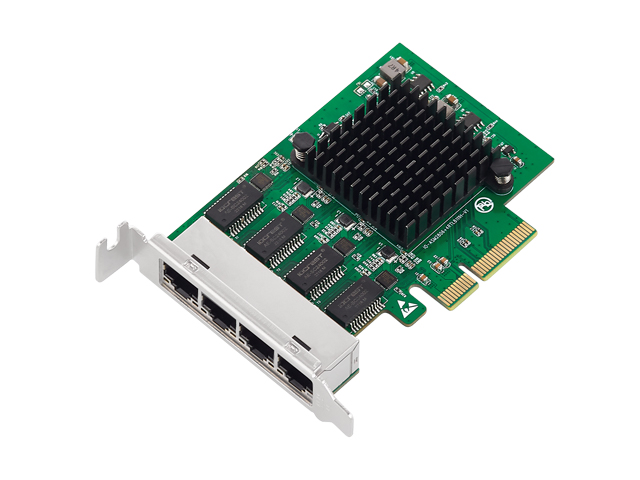

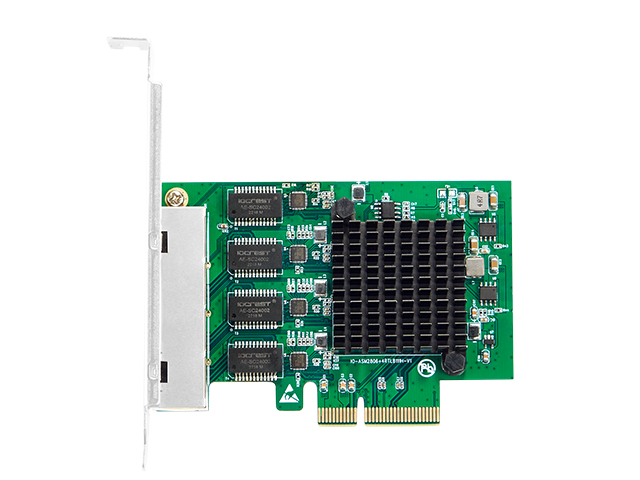

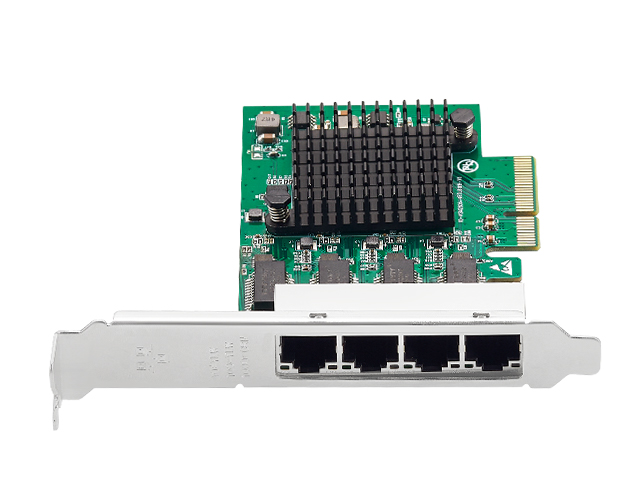

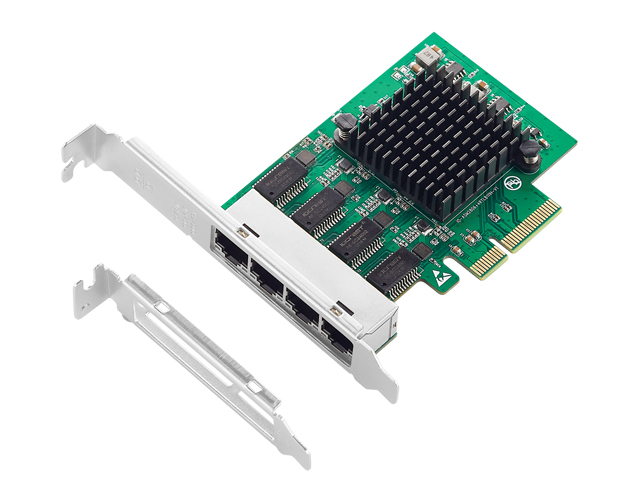

Lekuo 4-Port PCle to 1G Network Card,RTL8111H chip

Model

IO-PCE8111S-4GLAN

Chipset

RTL8111H

Input

PCIe x4

Output

4 x RJ45

Transmission Rate

1000Mbps

Bus Type

PCIe x4,x8,x16

Product Size

100x68.8mm

Weight

Usage Range

Desktop, servers and other network equipment

Operating Temperature

0°C to 55 °C

Storage Temperature

-20°C to 65 °C

System Compatibility

Windows,Linux,Mac OS and other systems

Package Included

1 x PCI-Express 1G Card 1 x Low Profile Bracket

Specification
• Integrated 10/100/1000M transceiver
• Supports Giga Lite (500M) mode
• Auto-Negotiation with Next Page capability
• Supports PCI Express 1.1
• Supports pair swap/polarity/skew correction
• Crossover Detection & Auto-Correction
• Supports 1-Lane 2.5Gbps PCI Express Bus
• Supports hardware ECC (Error Correction Code) function
• Supports hardware CRC (Cyclic Redundancy Check) function
• Transmit/Receive on-chip buffer support
• Supports PCI MSI (Message Signaled Interrupt) and MSI-X
• Fully compliant with IEEE802.3, 802.3u and 802.3ab
• Supports IEEE 802.1P layer 2 Priority Encoding
• Supports 802.1Q VLAN tagging
• Supports IEEE 802.3az-2010(EEE)
• Supports Full Duplex flow control (IEEE.802.3x)
• Supports jumbo frame to 9K bytes
• Supports quad core Receive-Side Scaling(RSS)
• Supports Protocol Offload(ARP&NS)
• Supports Microsoft WPI (Wake Packet Indication)
• Wake-On-LAN and "RealWoW"Technology (remote wake-up) support
• Supports ECMA-393 ProxZzzy Standard for sleeping hosts
System Requirement
• Windows 20000, ME, 98SE
• Windows Server 2003/XP/Visit/ 2008/7 /8 /10 32-/64-bit
• Linux
• MAC OS 10.4 or above and DOS

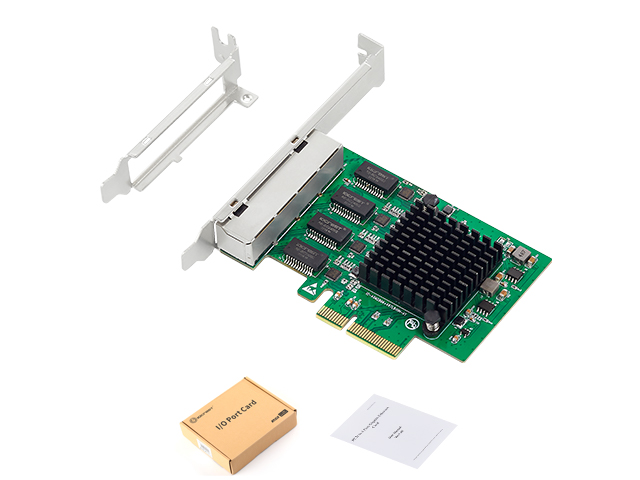

Package Content
• 1 x PCIe 4 Port Gigabit Ethernet Card
• 1 x User Manual
• 1 x Low Profile Bracket
Note: Contents may vary depending on country / market

Related Downloads

Driver Download

1. IO-PCE8111S-4GLAN

Download
