PCIe to 4-port RS-232 Serial card Multi-serial card,MM-PCE9904-4S_Shenzhen MMUI CO.,Ltd

微信二维码

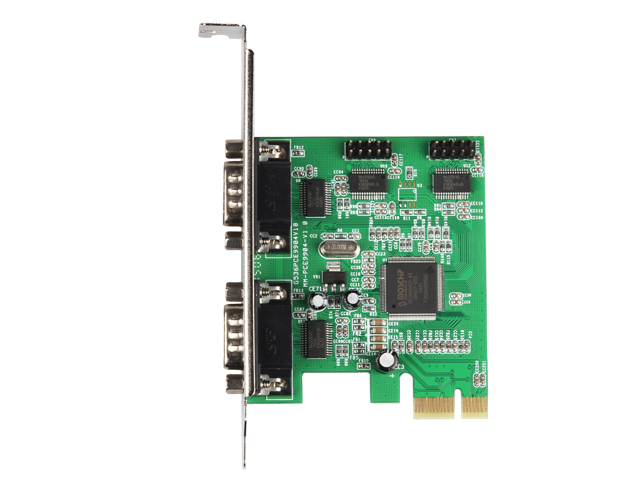

PCIe to 4-port RS-232 Serial card Multi-serial card,MM-PCE9904-4S

PCI-Express to 4 Serial Expansion Cards,2 serial transmission rate as high as 115.2 k mouth/s,Compatible standard: 16c550 UART

Model：

MM-PCE9904-4S

Input Interface：

PCIe

Output Interface：

RS232

Motherboard Slot：

PCIe

Transmission Rate:

115.2k /s

Auxiliary Accessories:

Driver CD

Product Size:

65.3x77.6mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Description
PCI-Express to 4 Serial Expansion Cards
Features
2 serial transmission rate as high as 115.2 k mouth/s
Compatible standard: 16c550 UART
Specification
Chipset: MosChip MCS9904
PCI-Express
Accord with PCI - Express 1.0 a norms
PCI-Express rate 2.5 Gb/s full duplex channel
Supports plug and play
Serial interface：RS-232
Compatible with the standard 16 c550 UART and 256 bytes of sending receiving FIFO
High-speed data transmission rate as high as115.2k/s
Supports RS-232 hardware flow control
Length of data bits：5，6，7，8
Parit：None、even、odd、space、mark
Stop bit：1，2
Driver supports Windows2000/xp/server 2003/xp 64bit/ Vista, Linux, Dos, MAC
System requirements
At least has an available PCI - Express x1 slot in PC

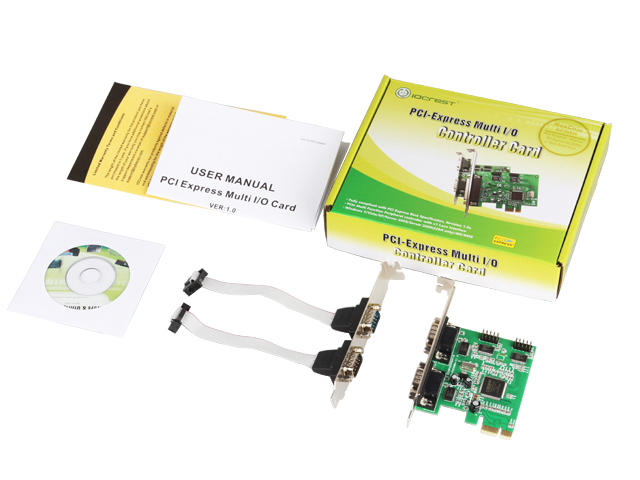

Package includes
1xPCI-Express to 4 serial expansion cards
1xUser manual
1xDriver disc

Related Downloads

Driver Download

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
