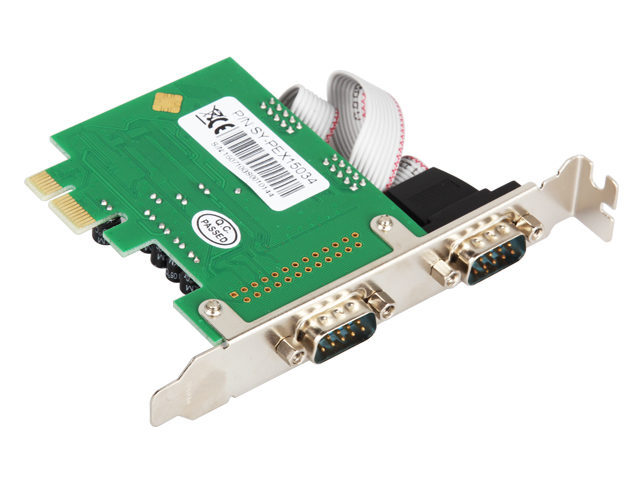

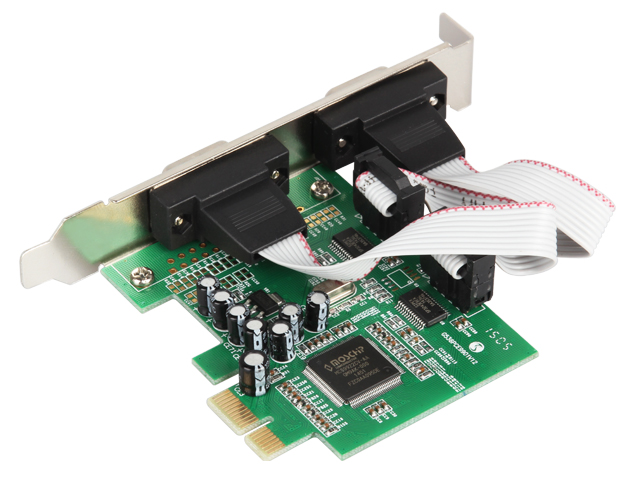

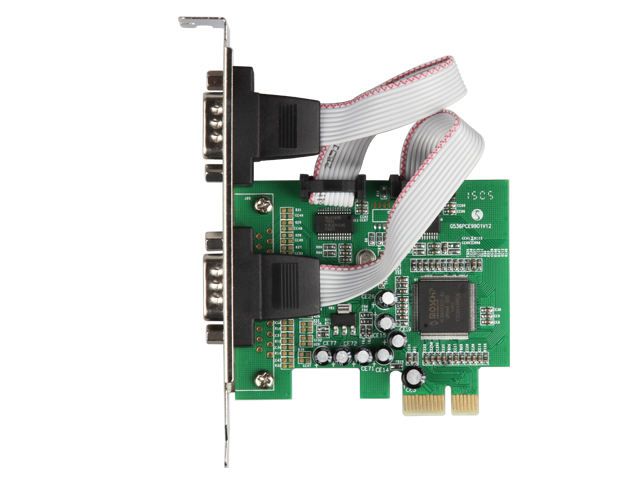

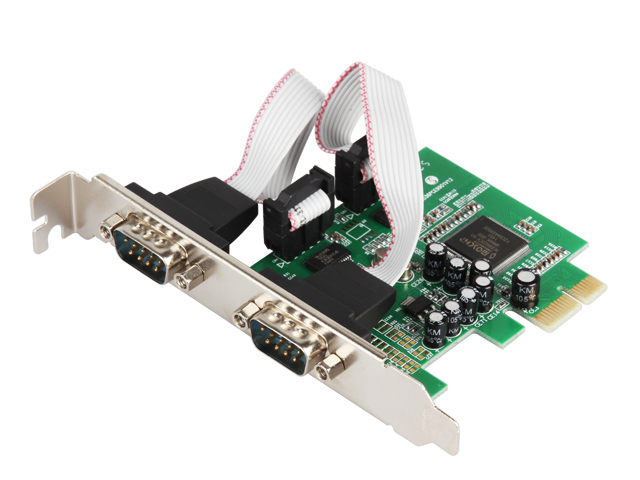

PCIe to 2 port Industrial Rs-232 Serial Multi-serial Card,IO-PCE9922-2S

Transfer rate of the two serial ports as high as 250 k/s,Compatible standard is 16c550 UART,The rate of PCI-Express is 2.5 Gb/s full duplex channel ,Supports plug and play,Serial interface RS-232.

Model：

IO-PCE9922-2S

Input Interface：

PCIe

Output Interface：

RS232

Motherboard Slot：

PCIe

Transmission Rate:

250 k/s

Auxiliary Accessories:

Low Profile Bracket,Driver CD

Product Size:

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Feature
Transfer rate of the two serial ports as high as 250 k/s
Compatible standard is 16c550 UART
Specification
Chipset: McsChip MCS9922
PCI-Express
Accord with PCI - Express 1.0 a norms
The rate of PCI-Express is 2.5 Gb/s full duplex channel
Supports plug and play
Serial interface RS-232
Compatible with the standard 16 c550 UART and 256 bytes of sending receiving FIFO
High speed data transfer rate as high as 250 k/s
Supports RS-232 hardware flow control
Length of data bits：5，6，7，8
Parity：None、even、odd、space、mark
Stop bit：1，2
System requirements
At least has an available PCI - Express x1slot in PC
Supported OS
Driver supports Windows2000/xp/server 2003/xp 64-bit/ Vista, Linux, Dos, MAC

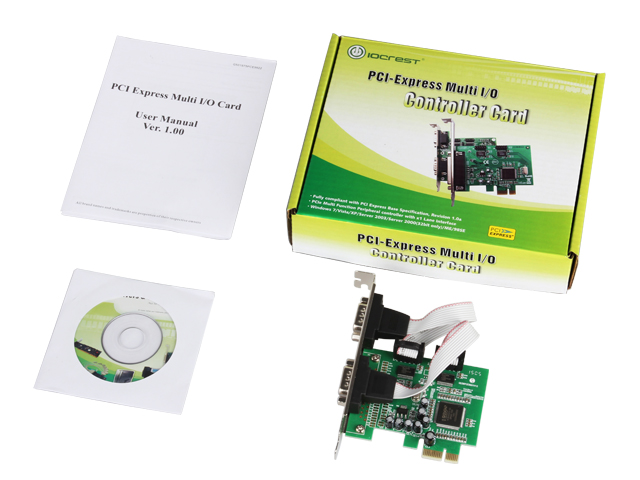

Package includes
PCI-Express to 2-serial expansion card
User manual
Driver disc
