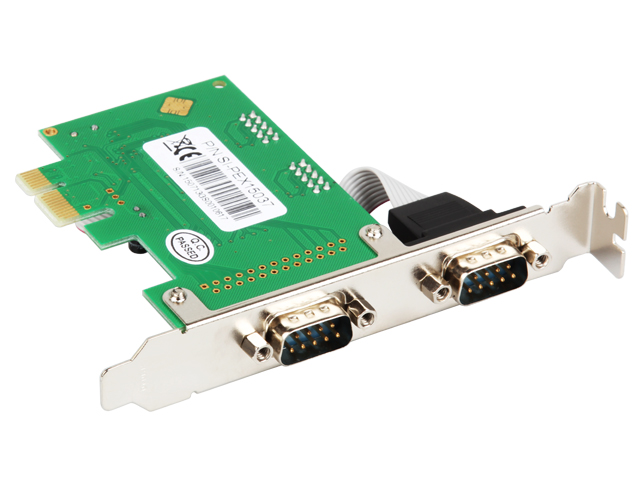

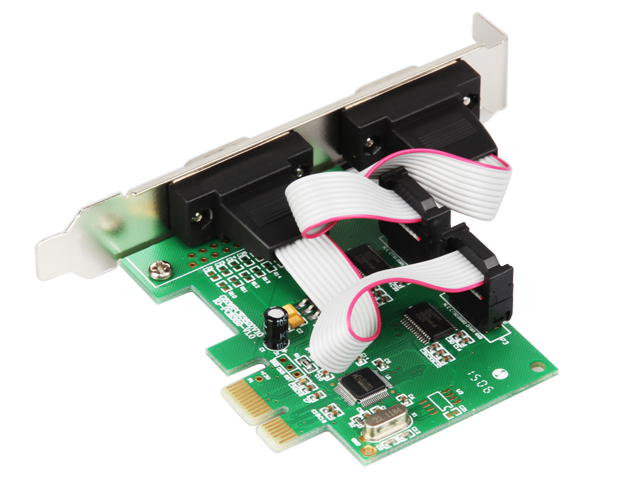

PCIe to 2 Ports RS232 DB9 Serial Controller Card,IO-PCE382-2S

Fully Compliant with PCI-Express Base Specification, Revision 1.0a,PCIe Multi Function Peripheral Controller with x1 Lane Interface,Support for D1, D2, D3hot and D3cold,Supports PCIe Power Management .

Model：

IO-PCE382-2S

Input Interface：

PCIe

Output Interface：

RS232

Motherboard Slot：

PCIe

Transmission Rate:

921.6Kbps

Auxiliary Accessories:

Low Profile Bracket,Driver CD

Product Size:

78.1x59.6mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Specifacation

WCH382 Chipset
Fully Compliant with PCI-Express Base Specification, Revision 1.0a
PCIe Multi Function Peripheral Controller with x1 Lane Interface
Support for D1, D2, D3hot and D3cold
Supports PCIe Power Management
Serial Ports:
16C450/550/Extended 550 Compatible UARTs
Supports RS232, RS485 & RS422 Modes
Bi-directional Speeds from 50 bps to 16Mbps/Port
Full Serial Modem Control
Supports Hardware, Software Flow Control
5, 6, 7, 8 and 9-bit Serial Format Supported
Even, Odd, None, Space & Mark Parity Supported
Custom BAUD Rates Supported with External Clock or by Programming Internal PLL
On Chip 256 Byte Depth FIFOs in Transmit, Receive Path of Each Serial Port
Supports Remote Wake-up and Power Management Features
Serial Port Transceiver Shutdown Supported
Supports Slow IrDA on All Serial Ports

Package detail

Package Info

Dimension: L 7 x W 5.5 x H 1.5 inch
Weight: 0 lb
UPC: 810154012657

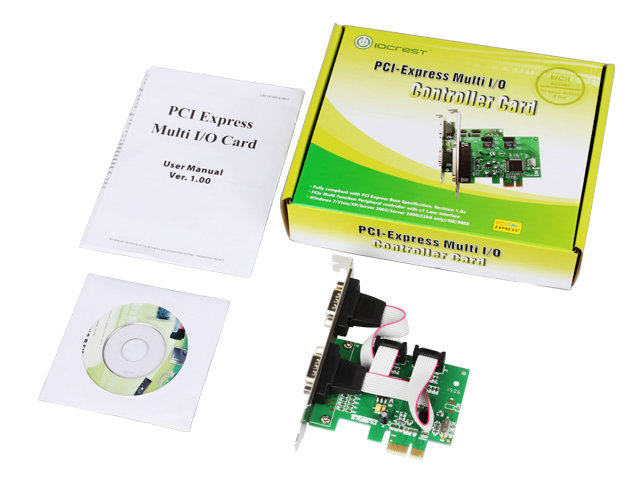

Package Includes

2-port Serial PCI-Express Card
CD Driver
User Manual

Software requirement

Windows 7 32/64-bit
Vista 32/64-bit
Windows XP 32/64-bit
Windows 2000
Linux Kernel 2.6.11 & Above
Mac 10.4 & Above
