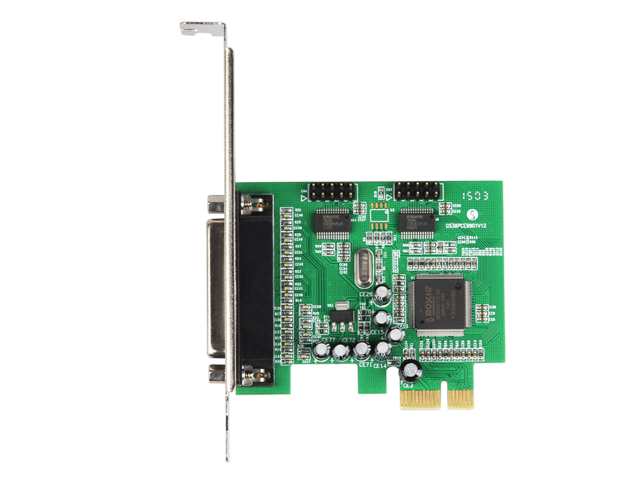

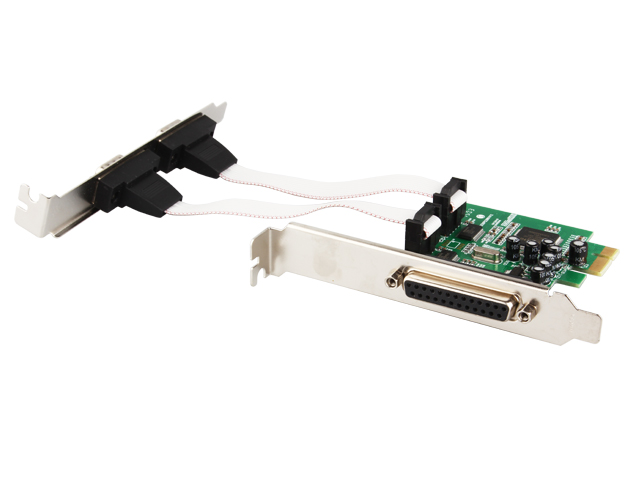

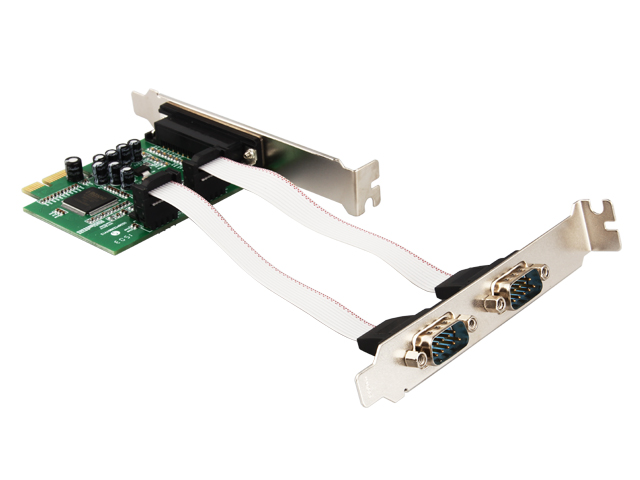

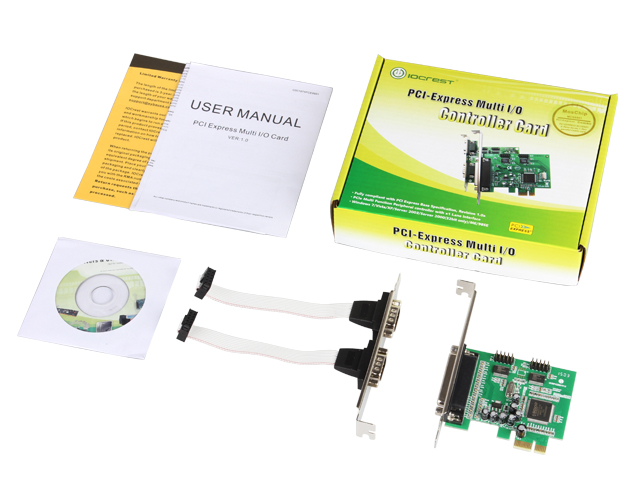

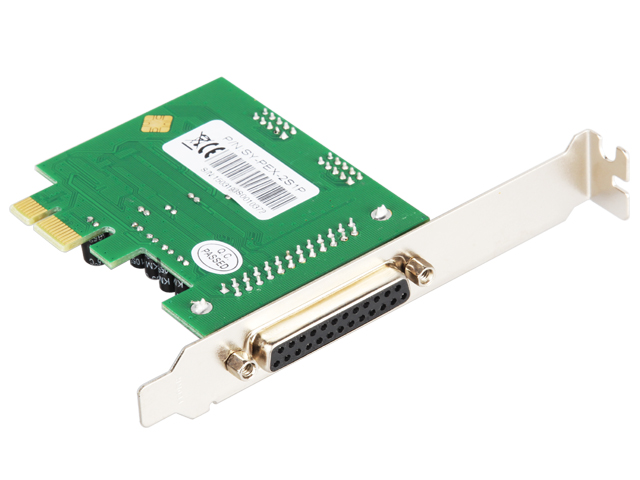

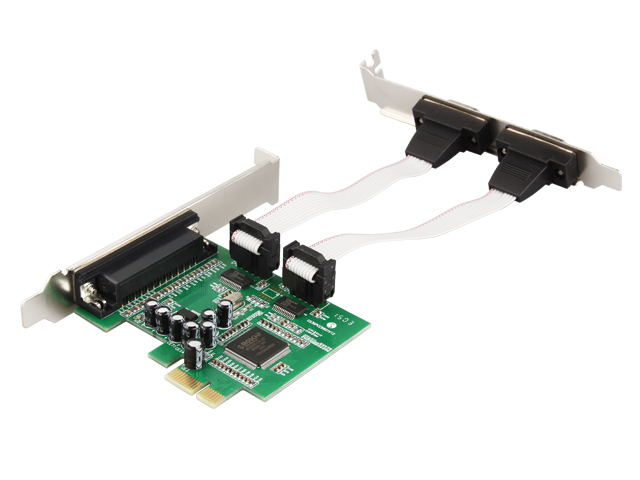

PCIe to 2 RS-232 DB-9 Serial Ports and 1 DB-25 Parallel Printer Ports (LPT1) Controller Card,MM-PCE9901-2S1P

Extend one DB25 parallel port in PC with PCI-Express slot,Parallel ports transmission rate as high as 1.5Mbyte /s,Compatible IEEE 1284 printer port.

Model：

MM-PCE9901-2S1P

Input Interface：

PCIe

Output Interface：

RS232

Motherboard Slot：

PCIe

Transmission Rate:

1.5 MBMbyte/s

Auxiliary Accessories:

Low Profile Bracket,Driver CD

Product Size:

85x67mm

Shopify Alibaba Aliexpress

Product Description

Product specifications

Driver Download

Document Download

Q&A

Functional description
Extend one DB25 parallel port in PC with PCI-Express slot
Parallel port's transmission rate as high as 1.5Mbyte /s
Compatible IEEE 1284 printer port

Specification
Accord with PCI - Express 1.0 a norms
PCI-Express rate 2.5 Gb/s full duplex channel
One SPP, PS2, EPP, ECP compatible IEEE 1284 printer port
High speed data transfer rate as high as 1.5 MBMbyte/s
Built-in 256 bytes FIFO
Supports plug and play

System requirements
At least has an available PCI - Express x1slot in PC
Druver supports Windows /10/xp/server 2003/xp 64位/ Vista, Linux, Dos
Chipset: MosChip MCS9901

Related Downloads

Driver Download

1. IO-M2F8111H-GLAN frequently asked questions

2. 352.354.358 Q&A on Chip Serial Series Products

3. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

4. IO-M2F8111H-GLAN frequently asked questions

5. 352.354.358 Q&A on Chip Serial Series Products

6. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

7. IO-M2F8111H-GLAN frequently asked questions

8. 352.354.358 Q&A on Chip Serial Series Products

9. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

10. IO-M2F8111H-GLAN frequently asked questions

11. 352.354.358 Q&A on Chip Serial Series Products

12. COMMON PROBLEMS WITH 1061R SERIES PRODUCTS

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear

What are the differences between this card and the usb3.1 10G interface that comes with the computer motherboard itself? Is it more stable than the usb3.0 interface of the computer itself?

It will be more stable than the USB port that comes with the computer itself. The reason is that most of the USB ports of a computer come out of the south bridge of the motherboard. This card directly comes out of the independent USB chip through the PCIE slot directly connected to the CPU, eliminating the south bridge as an intermediate link, which is more efficient and has lower wear and tear
