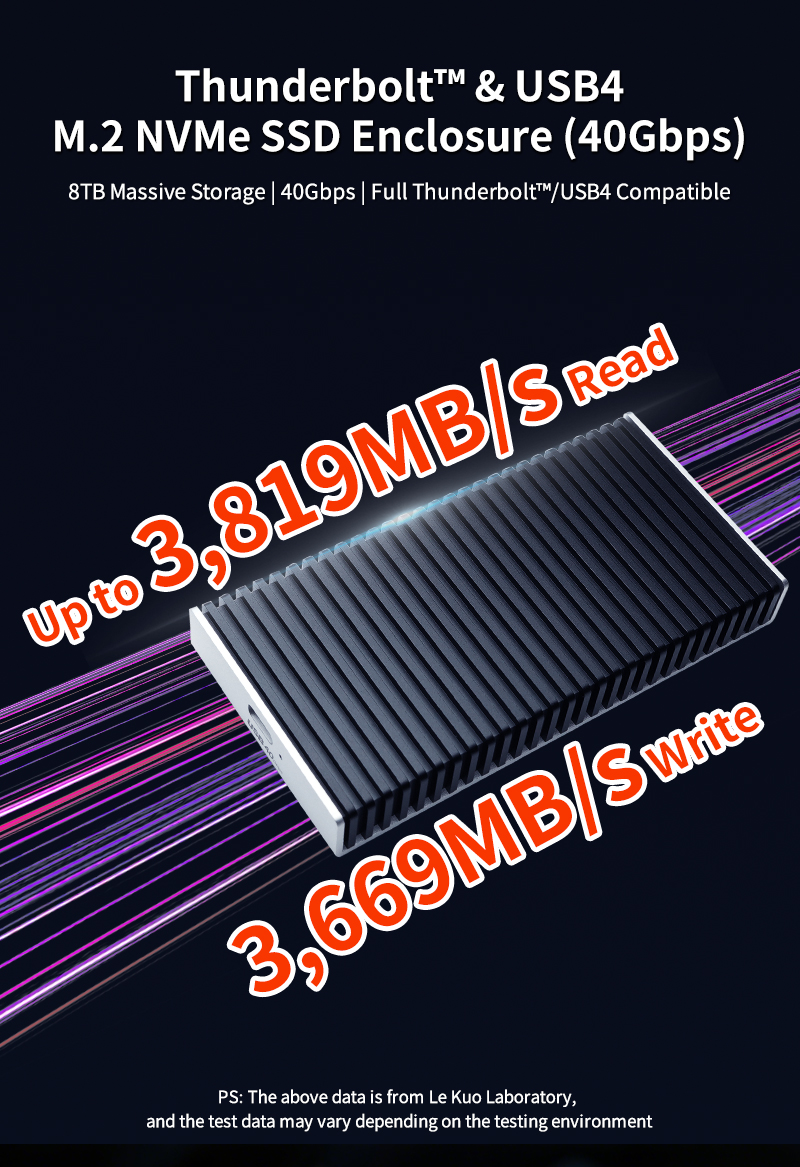

USB4/Thunderbolt to PCIe Gen4 x4 NVMe 40G Enclosure，AA24M11

Support up to PCI Express Gen4 x4，Support up to USB4/Thunderbolt Gen3 x2 with USB 3.2 and USB 2.0，Supports M.2 card size: 2230/2242/2260/2280，Supports M.2 M Key or B+M key Card Type，Note:Support M.2(NGFF) PCIe SSD。

Model：

AA24M11

Input Interface：

USB

Output Interface：

M.2

Motherboard Slot：

USB

Transmission Rate:

10Gbps

Auxiliary Accessories:

Type-C转Type-C数据线

Product Size:

115.5x58.5x15mm

Alibaba Aliexpress

Product Description

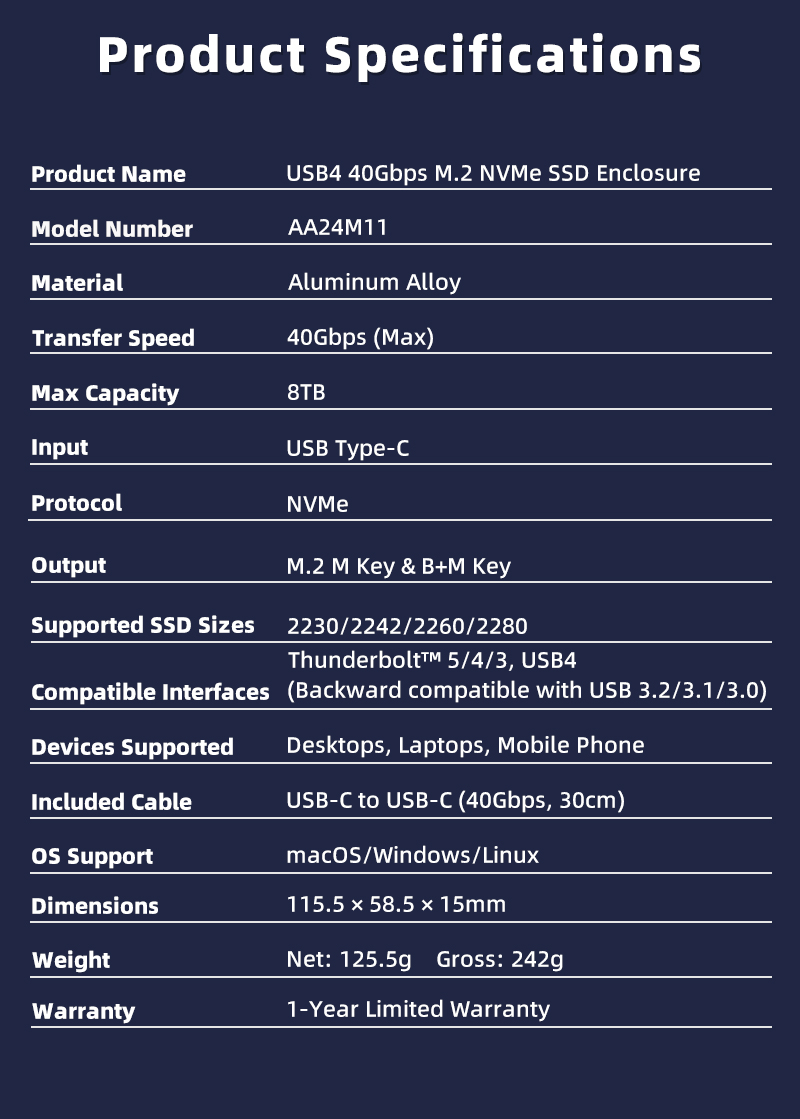

Product specifications

Driver Download

Document Download

Q&A

Features
• Compliant with PCI Express Base Specification Revision Rev. 4.0
• Compliant with PCI Express M.2 Specification Revision 1.1
• Support PCI Express Link Power Management.
• Compliant with Universal Serial Bus 3.2 Revision 1.0

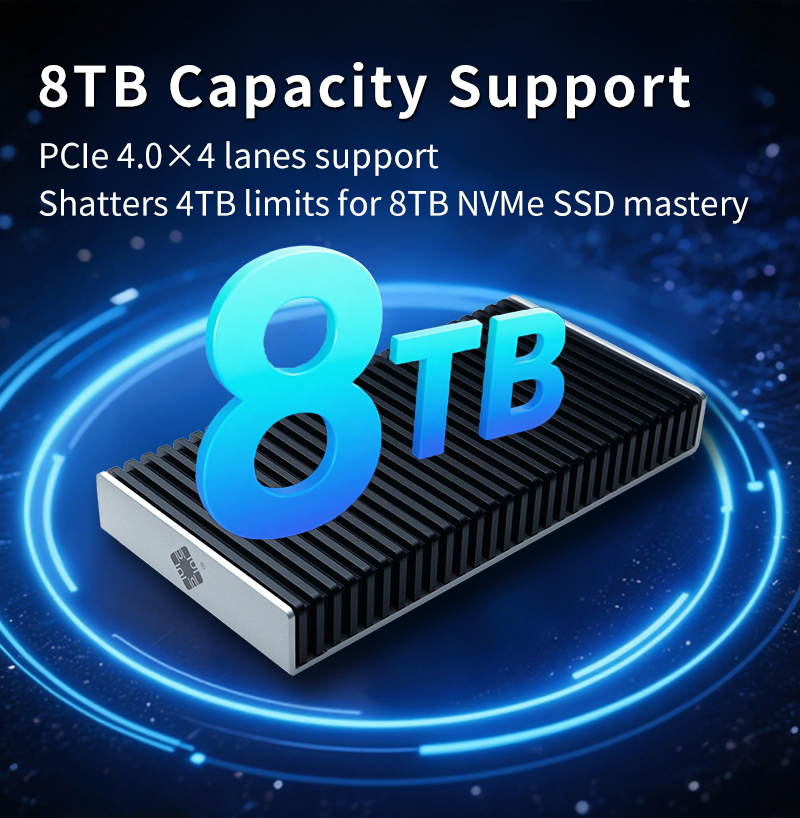

• Support up to PCI Express Gen4 x4
• Support up to USB4/Thunderbolt Gen3 x2 with USB 3.2 and USB 2.0
• Support BOT and UAS Protocol
• Support USB Hot Plug
• Compliant with Universal Serial Bus 4 Specification Rev. 1.0
• Compliant with Universal Serial Bus Type-C Cable and connector specification Revision 2.1
• Compliant with Universal Serial Bus Power Delivery specification Revision 3.1 Version 1.3
• Support USB Link power management
• Support NVME power management
• Support NVME: SCSI Translation Revision 1.5
• Support NVME Error Reporting &Recovery
• S.M.A.R.T drive monitoring
• Compliant with NVM Express Base Specification Revision 1.4c

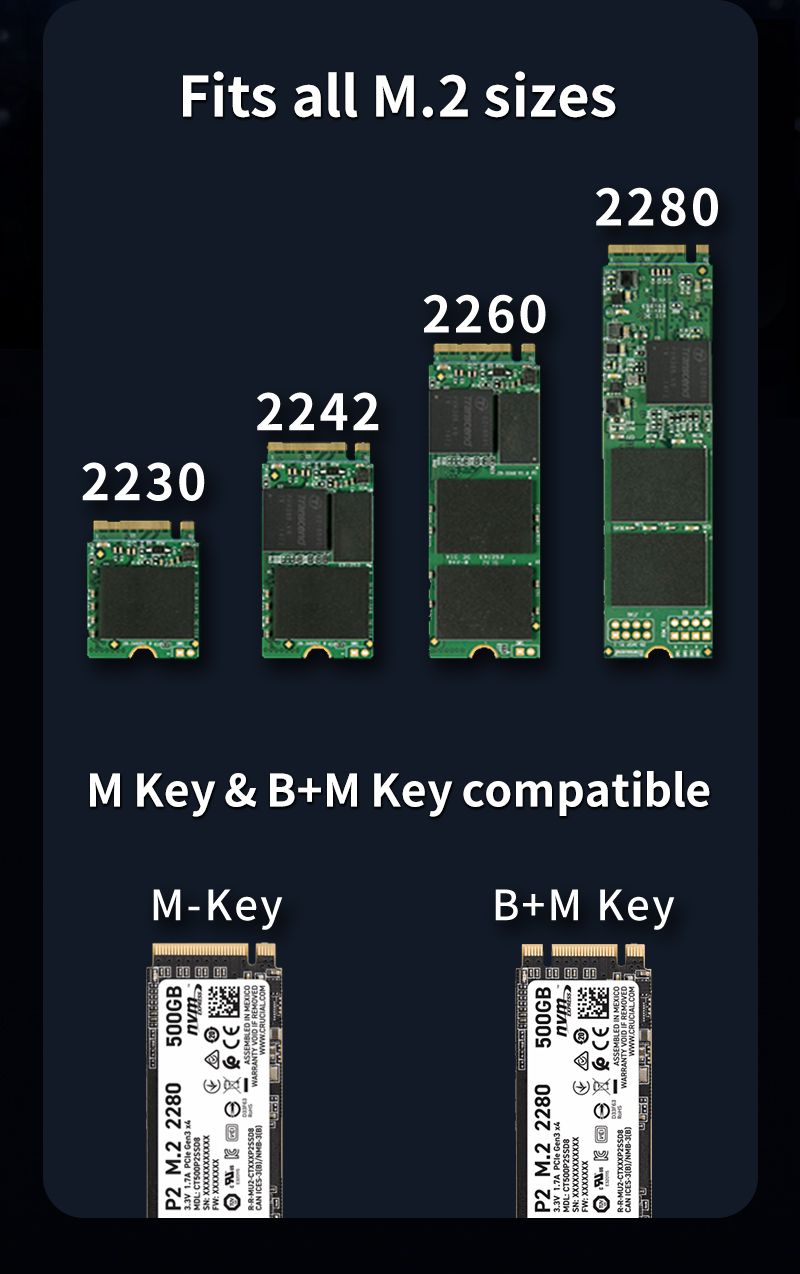

• Supports M.2 card size: 2230/2242/2260/2280
• Supports M.2 M Key or B+M key Card Type
• Note:Support M.2(NGFF) PCIe SSD
The efficiency mainly depends on M.2(NGFF) SSD master IC and the size of the capacity
System Requirements
• Windows, MacOS, Linux
Package Contents
• 1 x USB4/Thunderbolt to PCIe Gen4 x4 NVMe 40G Enclosure
• 1 x User Manual
• 1 x Type-C to Type-C Cable
Note: Contents may vary depending on country and market.
