Mini PCIe to 1 Port USB3.1 USB-C Host Controller Card,IO-mPU31-1C

Features
• Mini PCI Express Base Specification
• Compliant with Universal Serial Bus 3.1 specification Gen2
• Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1
• Compliant with USB Attached SCSI Protocol Revision 1.0
• Supports simultaneous operation of multiple USB 3.1, 3.0, USB 2.0 and USB 1.1 devices
• Supports USB data transfer rate of 10G/5G/480/12/1.5 Mbps
• Built-in over current protection on USB port
• USB port supplies maximum +5VDC / 3A power output to USB device
• Support device remote wakeup function from USB keyboard or mouse
• Hot-swapping feature allows connect/disconnect device without powering down the system
• Power Input: 2-pin Cable Type Power Connector
• Support Control, Bulk, Stream, Interrupt, Isochronous transfer type
• Operation Temperature ：0 to 60°C (32 to 140°F)
• Storage Temperature：-20 to 70°C (-4 to 158°F)
• Operation Humidity：5 to 95% RH
System Requirements
• Windows 8.x / 10 (X86/X64) (Windows in-box driver)
• Support Linux 2.6.31 or later (Linux OS already implemented USB3.0 driver)

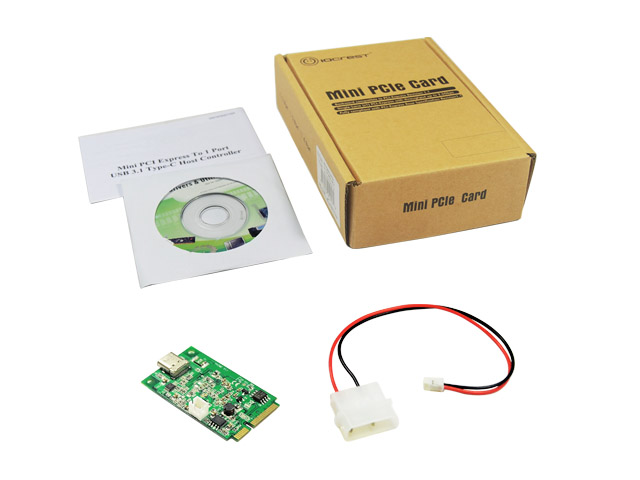

Package Contents

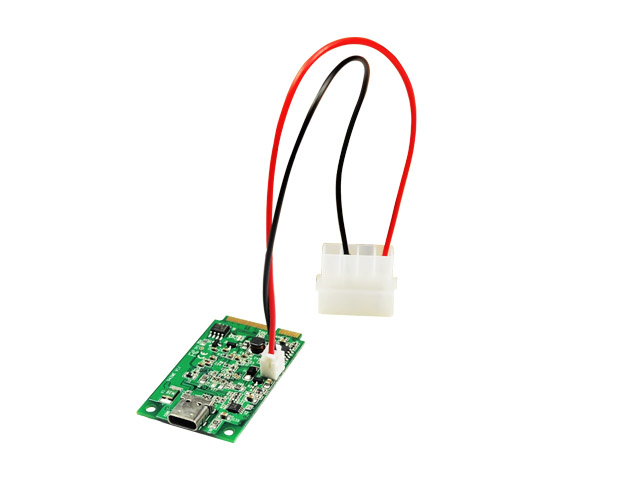

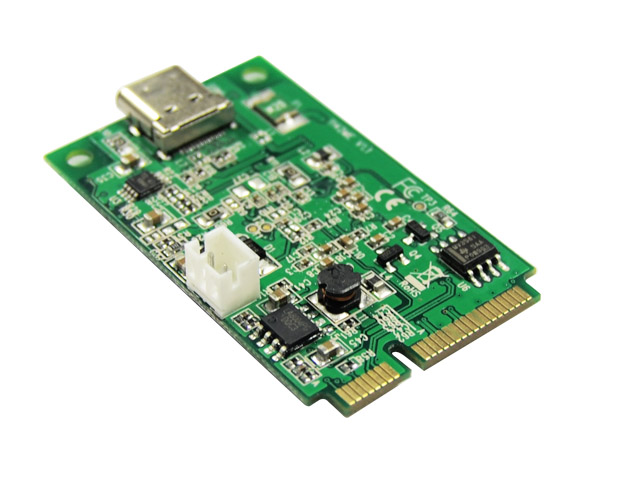

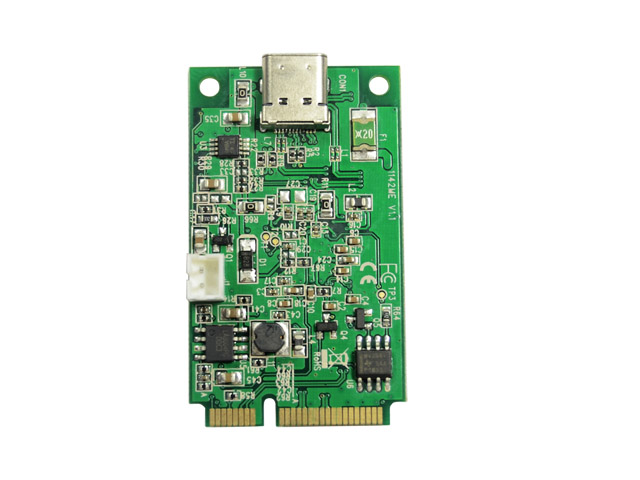

• 1 × Mini PCI-e USB 3.1 USB-C Card
• 1 × User Manual
• 1 × 2-Pin Molex Power cable
