Specification
Chipset:lntel l350-AM4
•Host lnterface: PCl Express·2.1  5GT/slanex4 lane
•Supports10/100/1000Mbps data rate auto negotiation
•Each port can send and receive eight queue
•Up to 86 pieces of queue receiver to adjust(RSS) in multiple processor system can minimize the use of the CPU
•Support 8 pool of each ports(a single queue) virtual machine device queue(VMDq)
•Support the SR- IOVfunction
•Support direct cache access(DCA)
•Support the lntel l/0V3.0 acceleration technology
•TS0 interleaved technique isto reduce the delay
•To minimize the equipment l/0 interrupt using MSl and MSl -X
•The UDP and TCP and lP checksum partial load
•The UDP and TCP send piecewise load(TS0)
•SCTP receiving and sending oheckand partial load
•The packet combination of interrupt and timer(packet timer) and absolute- interruption
•delay timer is to send and receive operation
•Support PCl Express base specification 2.0(5GTs)
•lntel l350AM4double integrated MAC+ PHY and SERDES chip oontroller with high
•performance, high reliability and low power consumption characteristics
•Super depth, based on the packet buffer perchannel can reduce the use ofthe CPU
•Hardware acceleration can be partial load taskfrom the main processor The controller can be used for partial load TCP/UDP/lP checksum TCP segment
•Server level of reliability, availability and performance characteristics:
•Link aggregation and load balancing
•Relevant switches: 802.3AD(LACP), common Trunking(GEC/FEC)
•Exchange and NIC norelated

Application
•Desktop computers, workstations and servers

System Reguirement
•Windows XP/7/8/10/ista/Server2003/Server2008/Server2012/ Linux2.4.xor above

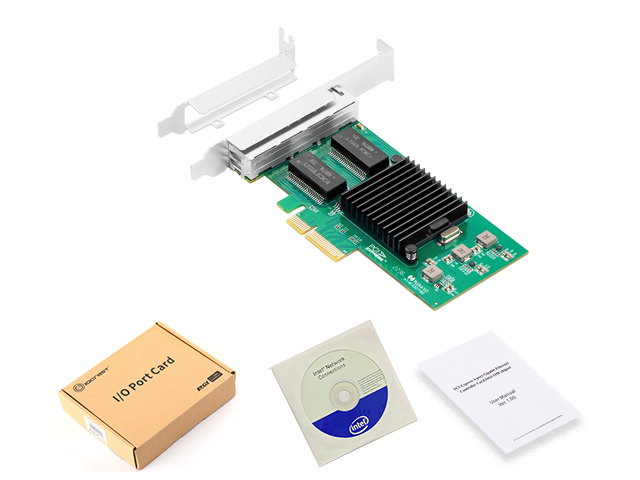

Package Content
•1xPCl Express Four Gigabit Ethemet controller card
•1xUser Manual
•1xDriverCD
•1xLow profile bracket
