Features

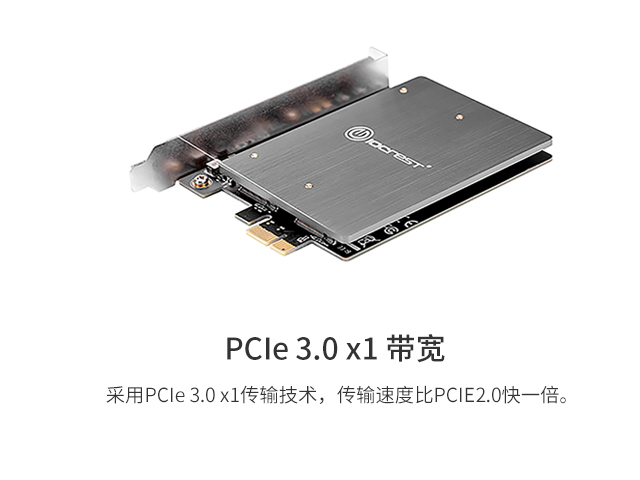

•Supports one lane of PCI Express.
•Complies with PCI Express Base Specification Revision 3.1a.
•Supports PCIe link layer power saving mode.

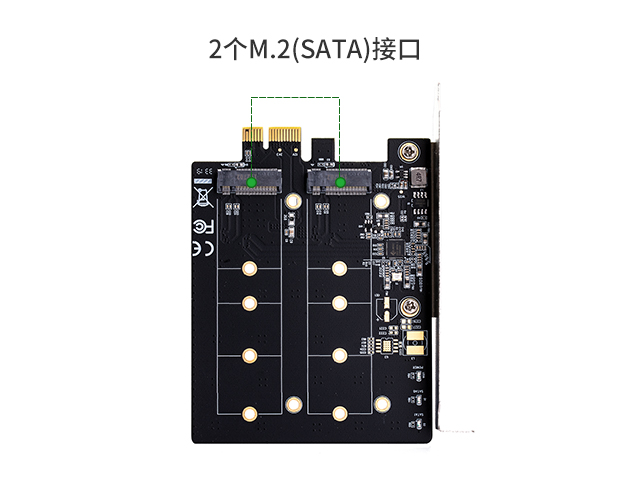

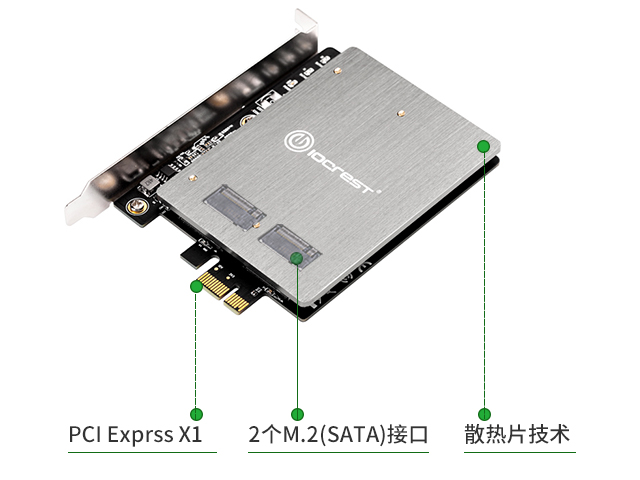

•Supports 2 x M.2(SATA) port.
•Supports command-based and FIS-based for Port Multiplier.
•Complies with SATA Specification Revision 3.2.
•Supports AHCI mode and IDE programming interface.
•Supports Native Command Queue (NCQ).
•Supports SATA link power saving mode (partial and slumber)
•Supports SATA plug-in detection capable.
•Supports drive power control and staggered spin-up.
•Supports SATA Partial / Slumber power management state.
System Requirements
•Supports Windows 7,8,8.1 and 10
•Windows server 2K8,2K12,2K16,2K19
•Linux-base OS

•UEFI

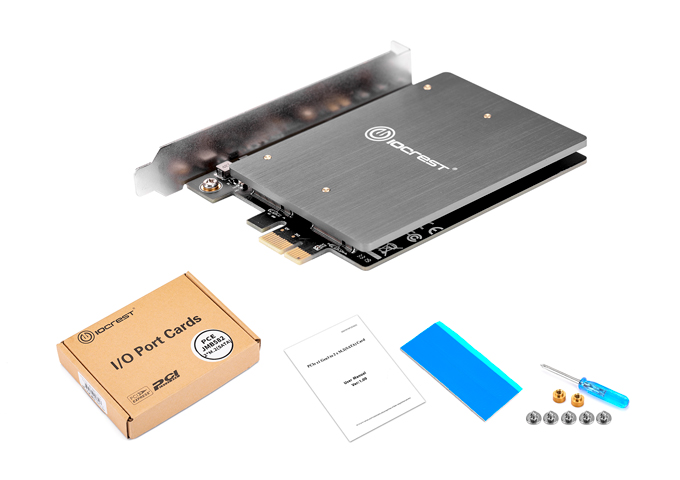

Package Contents
•1 x PCIe x1 Gen3 to 2 x M.2(SATA) Card
•1 x User Manual
•1 x M.2 Mounting material
•1 x Screwdriver
•2 x self-adhesive thermal pad

Note: Contents may vary depending on country/market
