Specifacation

• Chipset: Marvell 88SE9235

• Ports:

  • 2 External SATA 6Gb/s Ports

  • 2 Internal SATA 6Gb/s Ports

• Compliant with PCI-Express Specification Version 2.0 and Backward Compatible with PCI-Express 1x

• Compliant with Serial ATA Specification 3.0

• PCI-Express x2 Interface is Compatible with PCI-Express x4, x8, and x16 slots

• Supports Communication Speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps

• Hot Plug and Hot Swap

• Supports Native Command Queue (NCQ)

• Supports Port Multiplier FIS Based Switching or Command Based Switching

• Compatible with SATA 6G, 3G and 1.5G Hard Drives

Package detail

Package Info

• Dimension: L 7 x W 5.5 x H 1.5 inch

• Weight: 0.38 lb

• UPC: 810154016860

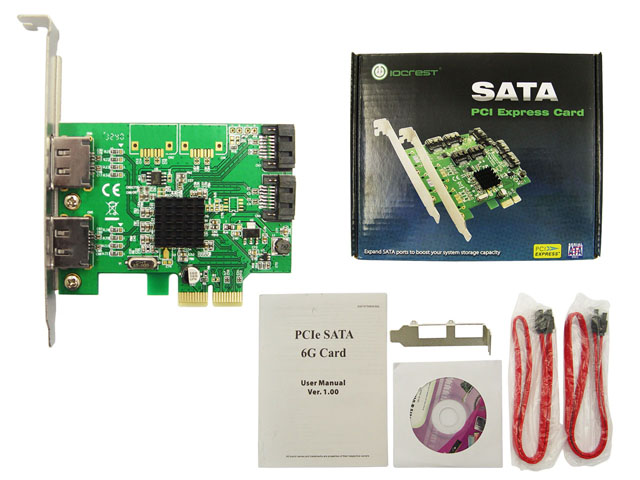

Package Includes

• SATA III 4-port PCI-e Version 2, x2 Slot Controller Card

• Driver CD

• Low Profile Bracket

• 19" SATA Cables (x2)

• User Manual

Software requirement

• Windows 8

• Windows 7

• Vista

• Windows XP

• Server 2008

• Server 2008 R2

• Server 2003

• Linux 2.6.x and Above (AHCI devices driver is a built-in feature)
